1899346 - Phoenix Contact

Description: DFK-MSTBVA 2,5/ 8-GF-5,08 - Feed-through header, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: DFK-MSTBVA 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pi

Download 1899346 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1899346 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

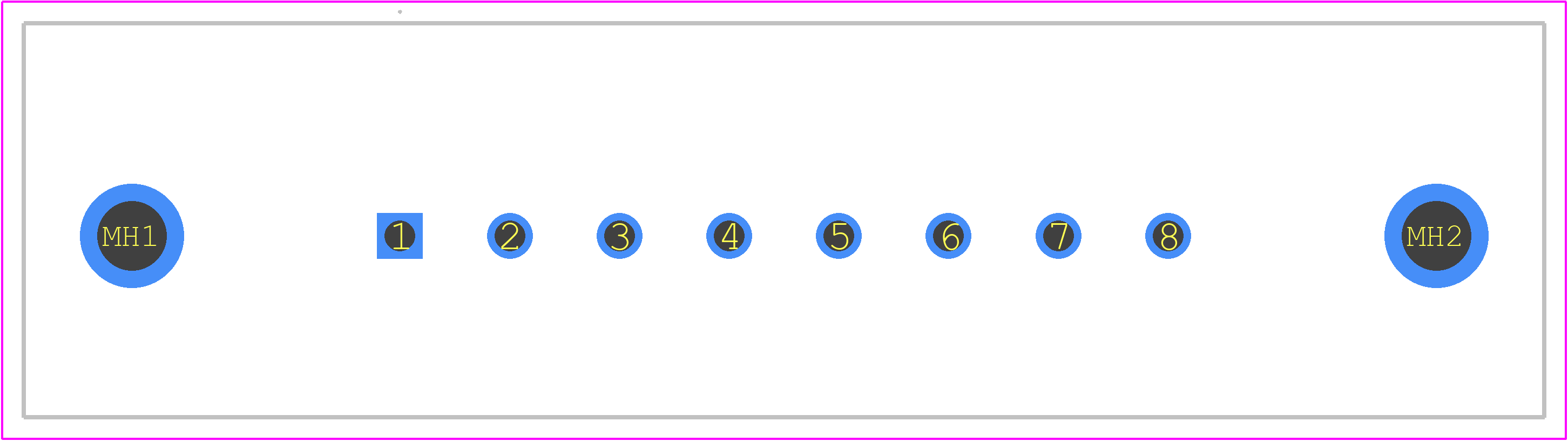

1899346 - Phoenix Contact PCB footprint - Other - Other - 1899346
click to zoom
3D Models
1899346 - Phoenix Contact - 3D model - Other - 1899346
click to zoom

1899346 Details

  • Manufacturer Part Number:

    1899346

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, UL 94V0

  • Fastening Method:

    SCREW

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    13 AWG

1899346 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1899346 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing and validation for specific applications.
  • The 1899346 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance, reliability, and safety. It's best to stick to the recommended wire gauge specified in the datasheet.
  • To ensure proper EMI shielding, make sure to connect the shielded cable to the connector's shield, and ensure the connector is properly grounded. Additionally, follow proper cable management and routing practices to minimize EMI radiation.
