19-22SURSYGC/S530-A2/TR8 footprint, schematic symbol and 3D model by Everlight

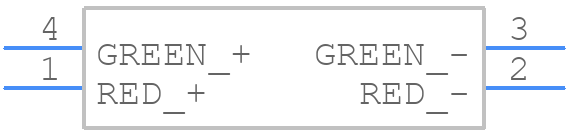

Symbol

PCB Footprints

3D Models

19-22SURSYGC/S530-A2/TR8 Details

The recommended storage temperature range for this LED is -30°C to 30°C.
Yes, this LED is suitable for outdoor applications, but it's recommended to use a suitable enclosure to protect it from environmental factors like moisture and UV radiation.
The maximum forward current for this LED is 30mA. Exceeding this current may reduce the LED's lifespan or cause it to fail prematurely.
To prevent damage during soldering, use a soldering iron with a temperature below 260°C, and avoid applying excessive force or bending the LED leads.
Yes, this LED is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliability.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 19-22SURSYGC/S530-A2/TR8 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 19-22, or try a keyword search, such as Visible LEDs
