19-237/R6GHBHC-M01/2T footprint, schematic symbol and 3D model by Everlight

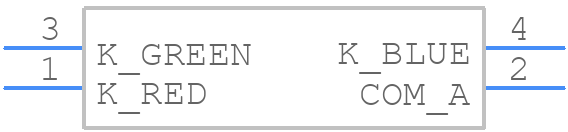

Symbol

PCB Footprints

3D Models

19-237/R6GHBHC-M01/2T Details

The recommended storage temperature for the 19-237/R6GHBHC-M01/2T is -20°C to 40°C, with a relative humidity of 60% or less.
While the 19-237/R6GHBHC-M01/2T is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV, and extreme temperatures.
The maximum allowable voltage for the 19-237/R6GHBHC-M01/2T is 3.5V, although the recommended operating voltage is 2.8V to 3.2V.
Handle the 19-237/R6GHBHC-M01/2T by the edges or the epoxy resin body, avoiding direct contact with the LED chip or wire bonds. Use anti-static wrist straps, mats, or other ESD protection measures to prevent electrostatic discharge damage.
While the 19-237/R6GHBHC-M01/2T is a high-quality component, it is not specifically designed for high-reliability applications such as aerospace, automotive, or medical devices. For such applications, consider using components with more stringent quality and reliability requirements.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 19-237/R6GHBHC-M01/2T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 19-23, or try a keyword search, such as Visible LEDs
