1903302-3 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Positions 9 | Number of Rows 1 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Thickness .2 – .5 MICM | Contact Layout Inline | Contact Underplating Material Nickel | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) .5 AMP | Contact Base Material Copper Alloy | Contact Mating Area Plating Material Gold | Dimensions: Profile Height from PCB .116 INCH |

Download 1903302-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1903302-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

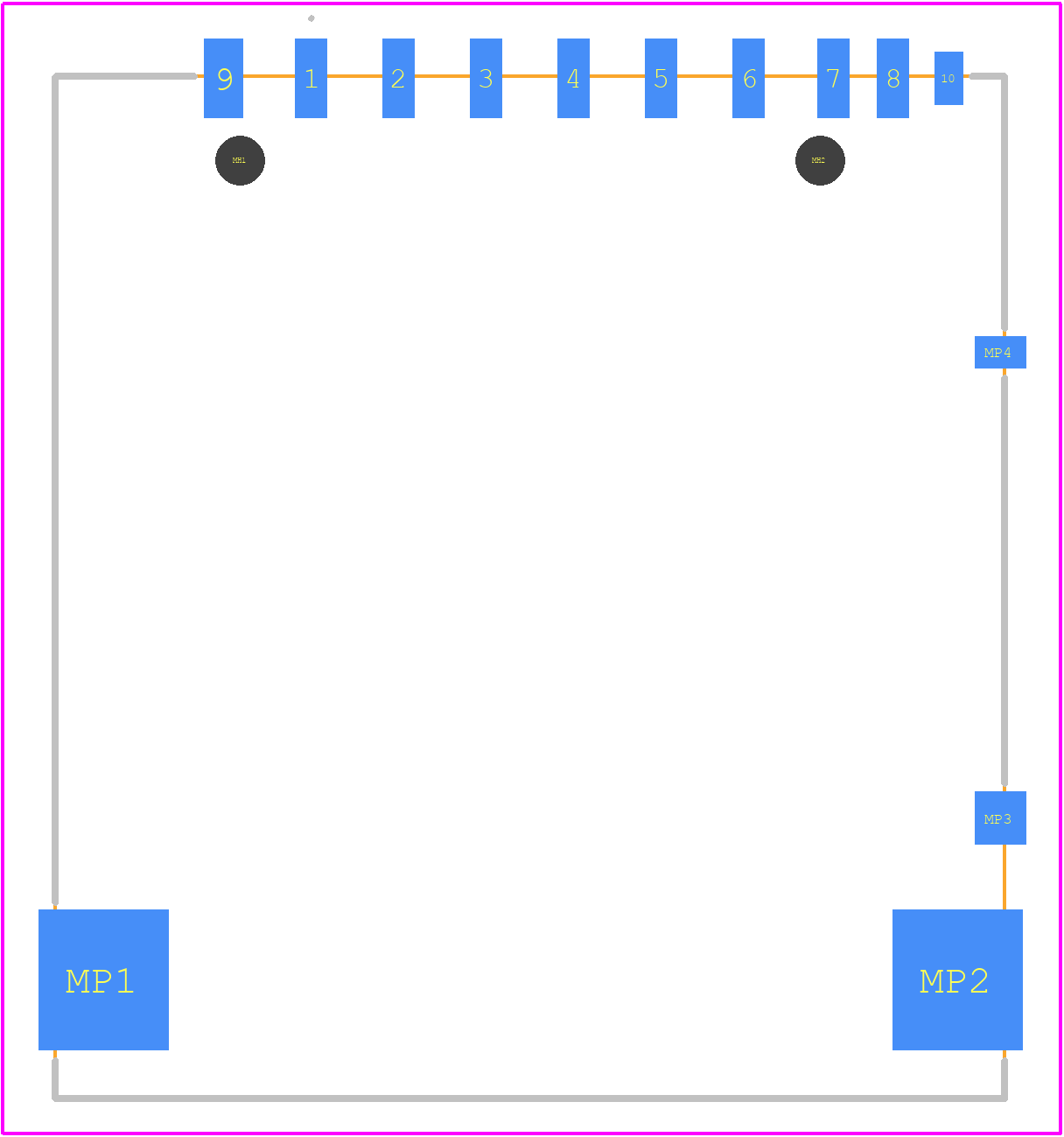

1903302-3 - TE Connectivity PCB footprint - Other - Other - 1903302-3-4
click to zoom
3D Models
1903302-3 - TE Connectivity - 3D model - Other - 1903302-3-4
click to zoom

1903302-3 Details

  • Manufacturer Part Number:

    1903302-3

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Body Depth:

    0.116 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Shell Material:

    COPPER ALLOY

  • Terminal Pitch:

    1.7 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

1903302-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 1903302-3 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1903302-3 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1903302-3 connector has a IP67 rating, which means it can withstand temporary immersion in water and exposure to certain chemicals. However, it's crucial to consult TE Connectivity's environmental testing data and application notes for specific guidance on using the connector in harsh environments.
  • The recommended wire size for the 1903302-3 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a suitable insulation material and temperature rating to ensure reliable connections. Consult TE Connectivity's application notes for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1903302-3 Overview

Use the download button to access the 1903302-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19033, or try a keyword search, such as Headers and Edge Type Connectors
