1906776 - Phoenix Contact

Description: MFKDSP/ 5-5,08 - Printed circuit board terminal, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 1 mm<sup>2</sup>, number of potentials: 5, number of rows: 1, number of positions per row: 5, product range: MFKDSP, pitch: 5.08 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.3 mm, number of solder pins per potential: 2, type of packaging: packed in cardb

Download 1906776 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1906776 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

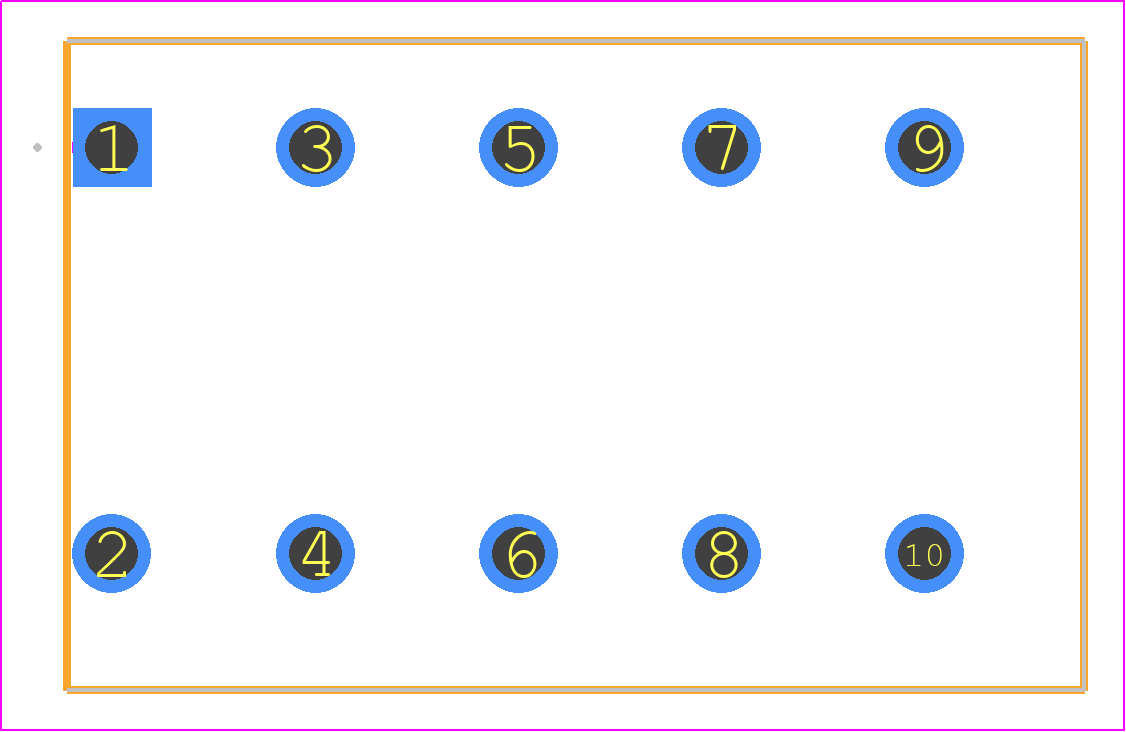

1906776 - Phoenix Contact PCB footprint - Other - Other - 1906776
click to zoom
3D Models
1906776 - Phoenix Contact - 3D model - Other - 1906776
click to zoom

1906776 Details

  • Manufacturer Part Number:

    1906776

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1906776 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and material to ensure the correct torque value.
  • Yes, the 1906776 connector is designed to withstand vibrations and shocks, but it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
  • The 1906776 connector is designed for industrial applications and can operate in temperatures ranging from -40°C to 125°C. However, it's essential to consult the datasheet and Phoenix Contact's guidelines for specific environmental requirements.
  • Yes, the 1906776 connector is designed to be compatible with other Phoenix Contact products, including PCB terminals and connectors, to provide a comprehensive connection solution.
  • The maximum current rating for the 1906776 connector is 12 A per contact, but it's essential to consult the datasheet and consider the specific application's requirements to ensure safe and reliable operation.
