191-009-223R001 - NorComp

Description: D-Sub Standard Connectors 9P Fem Press Fit .125" dia. hole

Download 191-009-223R001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
191-009-223R001 - NorComp - PCB symbol
click to zoom
PCB Footprints

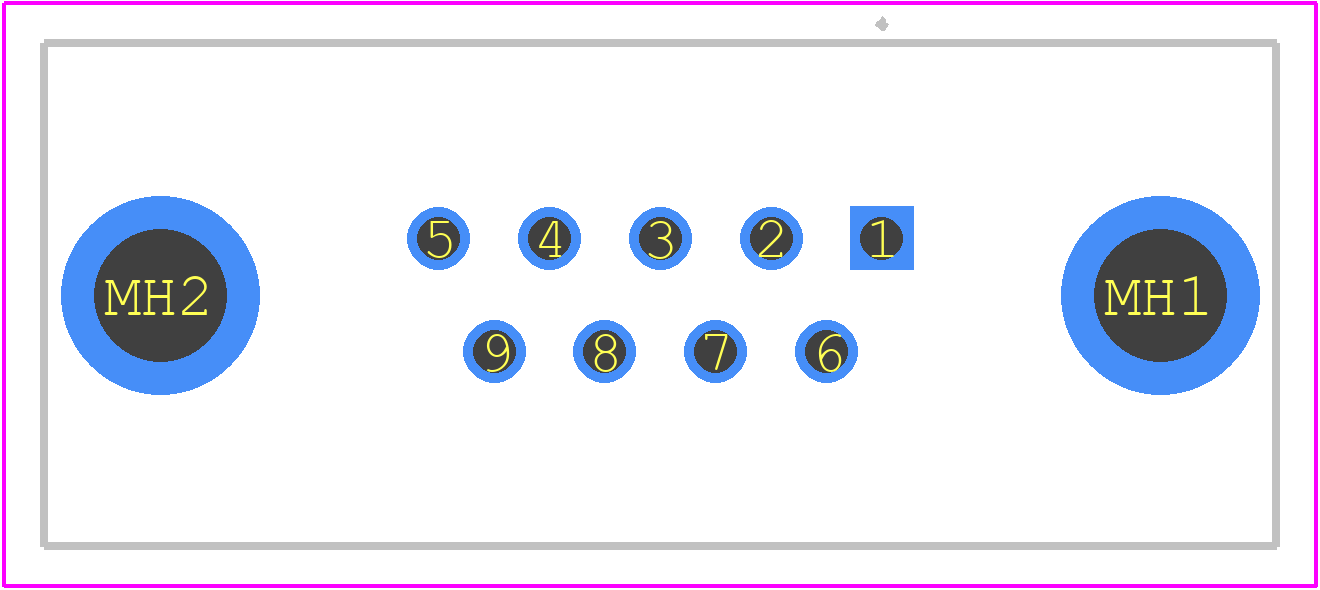

191-009-223R001 - NorComp PCB footprint - Other - Other - 191-009-223R001-1
click to zoom
3D Models
191-009-223R001 - NorComp - 3D model - Other - 191-009-223R001-1
click to zoom

191-009-223R001 Details

  • Manufacturer Part Number:

    191-009-223R001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.68

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0
