191-015-223R001 - NorComp

Description: 15 Position D-Sub Receptacle, Female Sockets Connector 2 (DA, A) Signal 5A -55°C ~ 125°C

Download 191-015-223R001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

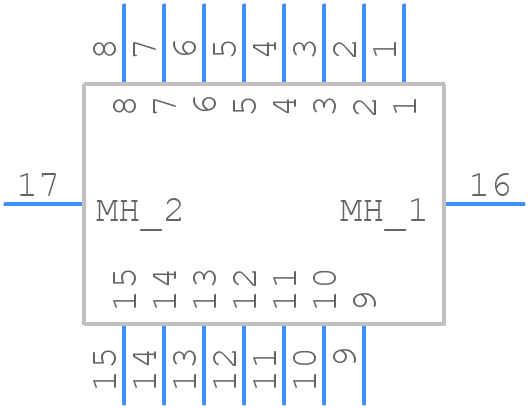

191-015-223R001 - NorComp - PCB symbol
click to zoom
PCB Footprints

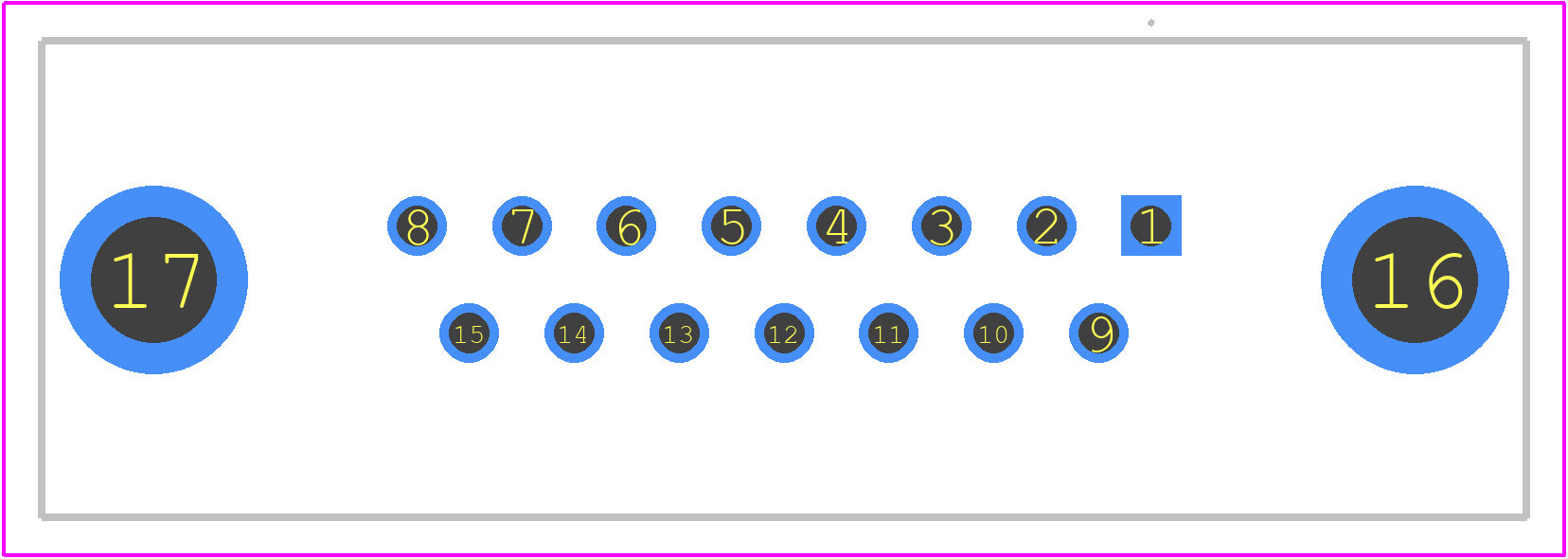

191-015-223R001 - NorComp PCB footprint - Other - Other - 191-015-223R001-1
click to zoom
3D Models
191-015-223R001 - NorComp - 3D model - Other - 191-015-223R001-1
click to zoom

191-015-223R001 Details

  • Manufacturer Part Number:

    191-015-223R001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.5

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

191-015-223R001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs).
  • Yes, the 191-015-223R001 is designed to withstand high-vibration environments, making it suitable for use in industrial, aerospace, and defense applications.
  • The operating temperature range of the 191-015-223R001 is -55°C to 125°C (-133°F to 257°F).
  • Yes, the connector is designed to be compatible with potting or encapsulation, but it's recommended to consult with NorComp or a qualified engineer to ensure proper sealing and protection.
  • The mating cycle life of the 191-015-223R001 is 500 cycles minimum, but this can vary depending on the application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

191-015-223R001 Overview

Use the download button to access the 191-015-223R001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 191-0, or try a keyword search
