1913730 - Phoenix Contact

Description: PC 6-16/ 4-GF-10,16 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PC 6-16/..-GF, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICO

Download 1913730 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1913730 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

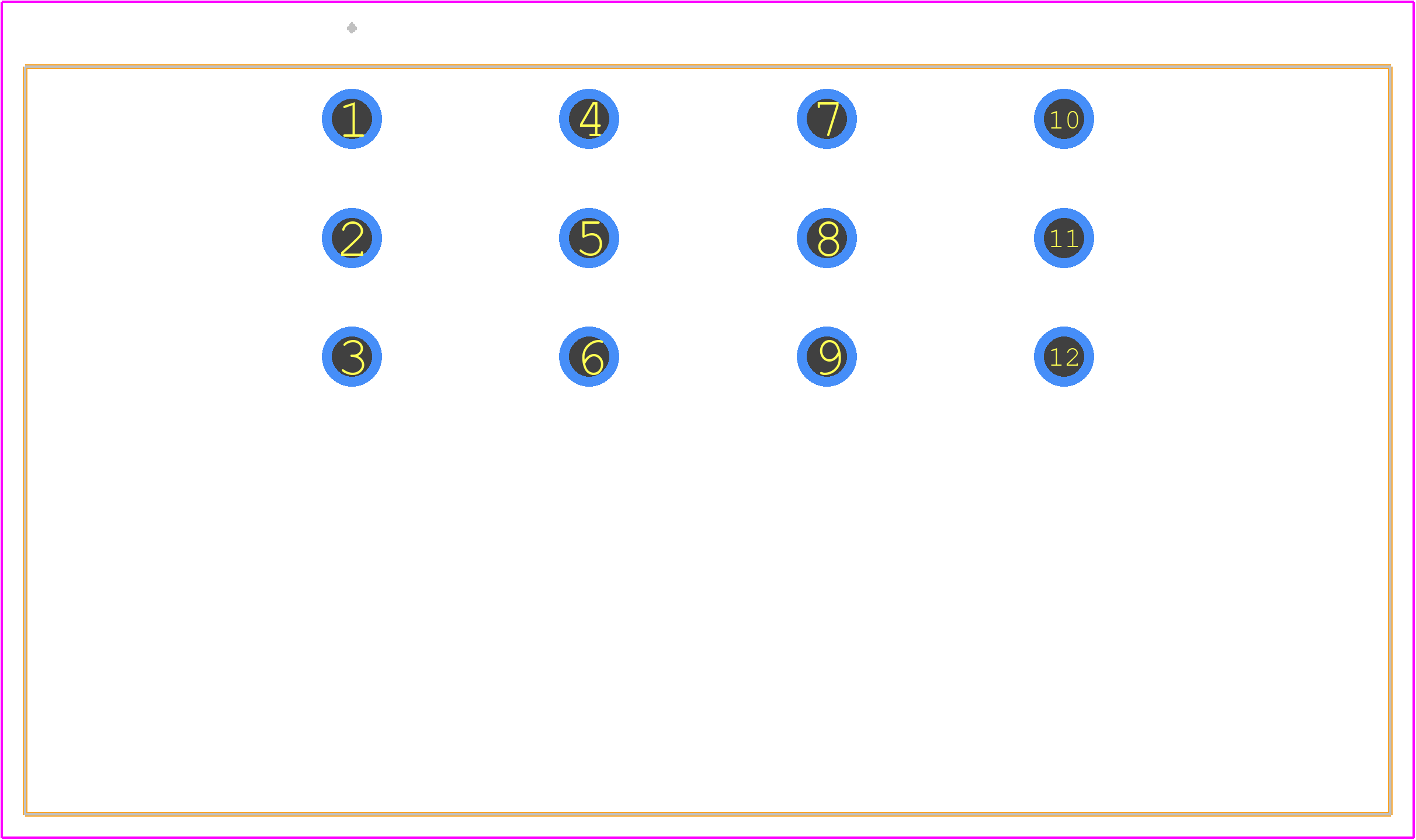

1913730 - Phoenix Contact PCB footprint - Other - Other - 1913730
click to zoom
3D Models
1913730 - Phoenix Contact - 3D model - Other - 1913730
click to zoom

1913730 Details

  • Manufacturer Part Number:

    1913730

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1913730 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting.
  • While the 1913730 is designed for industrial use, it's not specifically rated for high-vibration applications. For such use cases, consider using connectors with specialized vibration-resistant designs.
  • To ensure reliable connections in humid or wet environments, apply a thin layer of dielectric grease to the contacts and ensure proper sealing of the connector housing.
  • The 1913730 is rated for operation between -40°C and 125°C, but it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • While the 1913730 is designed for signal transmission, it's not recommended for power applications above 10A. For higher current applications, consider using connectors specifically designed for power transmission.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1913730 Overview

Use the download button to access the 1913730 schematic symbol, PCB footprint, and 3D model.
