1914040000 - Weidmüller

Description: PCB terminal, 320 V, 24 A, Pitch in mm: 5.00, 2.5 mm², Number of poles: 8, Tension-clamp connection, THT solder connection, 135°, Box

Download 1914040000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1914040000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

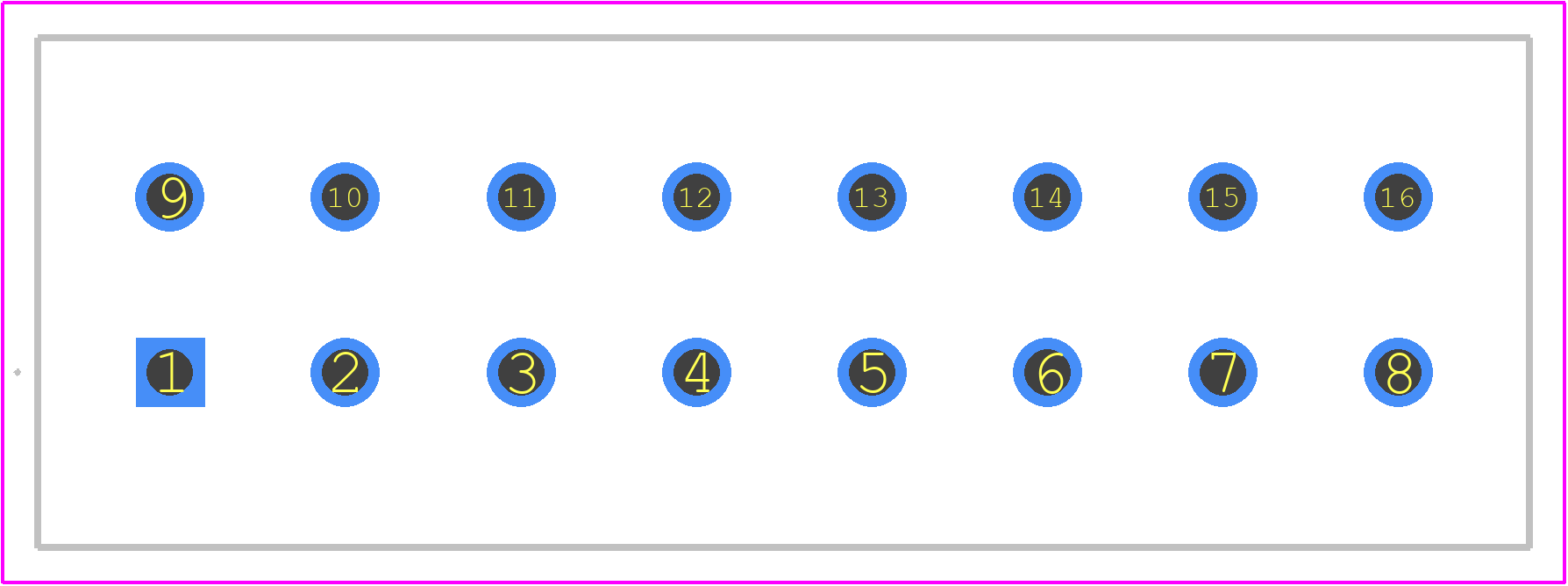

1914040000 - Weidmüller PCB footprint - Other - Other - 1914040000
click to zoom
3D Models
1914040000 - Weidmüller - 3D model - Other - 1914040000
click to zoom

1914040000 Details

  • Manufacturer Part Number:

    1914040000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.57

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    24 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    14 AWG

1914040000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1914040000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1914040000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The recommended torque for the screw terminals on the 1914040000 is 0.5 Nm to 1.2 Nm, depending on the wire size and application.
  • The 1914040000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1914040000 has an IP20 rating, providing protection against solid objects larger than 12 mm and no protection against water.
