Part Image

1922569 - Phoenix Contact

Description: PCV 6-16/ 2-GF-10,16 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PCV 6-16/..-GF, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBI

Download 1922569 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1922569 - Phoenix Contact - PCB symbol
click to zoom

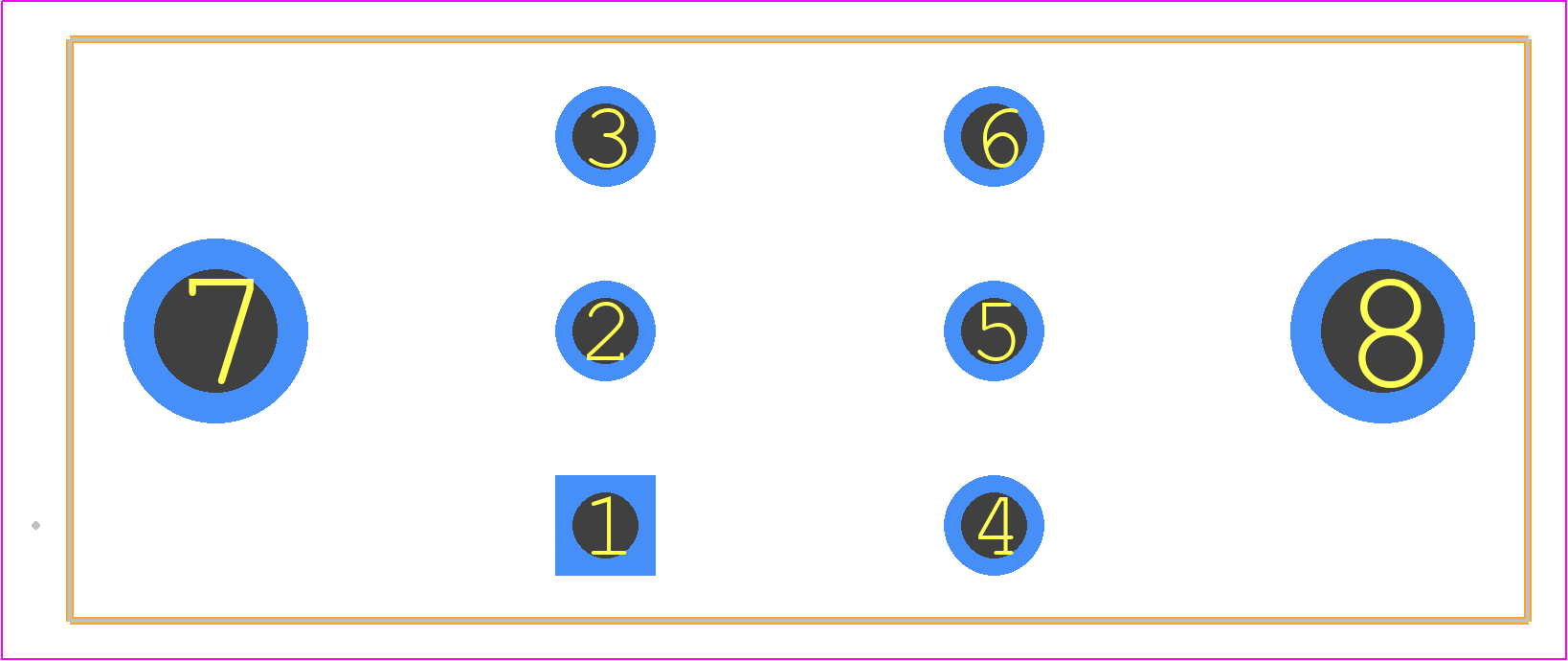

PCB Footprints
1922569 - Phoenix Contact PCB footprint - Other - Other - 1922569
click to zoom
3D Models
1922569 - Phoenix Contact - 3D model - Other - 1922569
click to zoom

1922569 Details

  • Manufacturer Part Number:

    1922569

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CB; CUL; EAC; SEV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1922569 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1922569 is -40°C to 125°C.
  • Yes, the 1922569 is designed for use in hazardous locations and meets the requirements for Class I, Division 2, Groups A, B, C, and D.
  • The 1922569 can accommodate wire sizes up to 2.5 mm² (14 AWG).
  • Yes, the 1922569 is suitable for power distribution applications up to 630 V AC/DC and 32 A.
  • Yes, the 1922569 is designed to be compatible with other Phoenix Contact products, including their range of connectors and terminals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1922569 Overview

Use the download button to access the 1922569 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19225, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
