1922585 - Phoenix Contact

Description: PCV 6-16/ 4-GF-10,16 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PCV 6-16/..-GF, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBI

Download 1922585 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

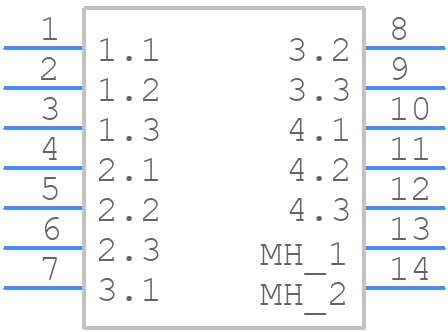

1922585 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

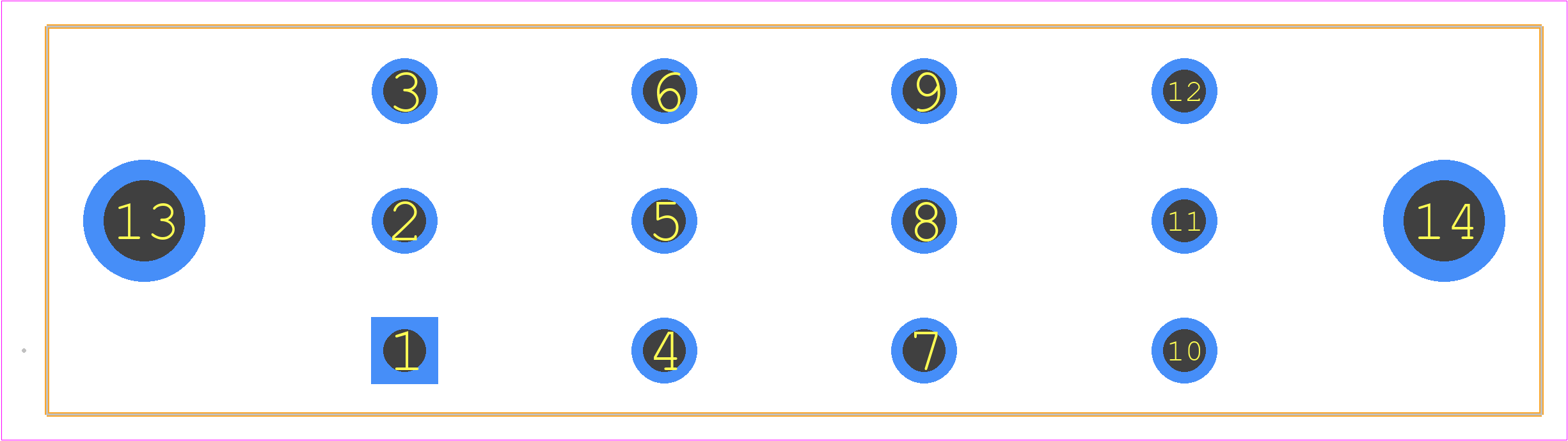

1922585 - Phoenix Contact PCB footprint - Other - Other - 1922585
click to zoom
3D Models
1922585 - Phoenix Contact - 3D model - Other - 1922585
click to zoom

1922585 Details

  • Manufacturer Part Number:

    1922585

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1922585 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines for screw connections.
  • Yes, the 1922585 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing and validation for specific application requirements.
  • The 1922585 connector has a protection rating of IP67, making it suitable for outdoor use and exposure to dust and water. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's crucial to ensure the wire gauge meets the connector's mechanical and electrical requirements, and to perform additional testing and validation as needed.
  • The 1922585 connector meets various safety standards, including UL 94 V-0 and IEC 60320-1. Ensure compliance with relevant safety regulations and industry standards for your specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1922585 Overview

Use the download button to access the 1922585 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19225, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
