1923908 - Phoenix Contact

Description: MSTBA 2,5 HC/ 6-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MSTBA 2,5 HC/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB

Download 1923908 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1923908 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

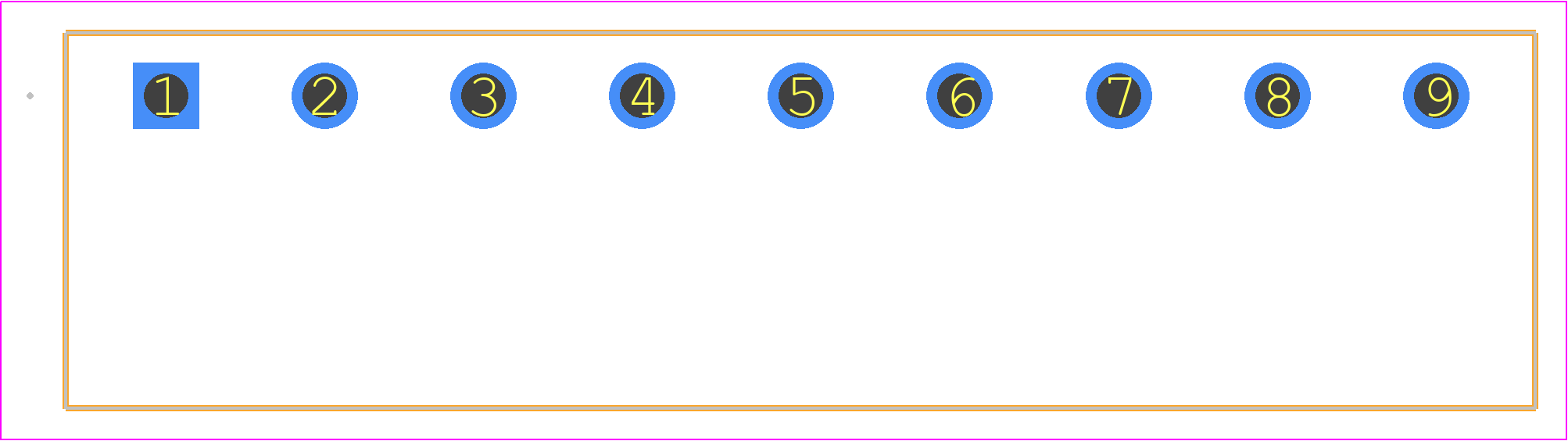

1923908 - Phoenix Contact PCB footprint - Other - Other - 1923908
click to zoom
3D Models
1923908 - Phoenix Contact - 3D model - Other - 1923908
click to zoom

1923908 Details

  • Manufacturer Part Number:

    1923908

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.19

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    16 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CCA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1923908 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1923908 is -40°C to 125°C, according to Phoenix Contact's documentation.
  • The 1923908 is designed for low-voltage applications up to 250 V AC/DC. It's not suitable for high-voltage applications above 250 V.
  • The 1923908 has a IP20 rating, which means it's not designed for use in humid or wet environments. It's intended for dry, indoor applications.
  • The maximum current rating for the 1923908 is 10 A per contact, according to Phoenix Contact's specifications.
  • Yes, the 1923908 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
