1924127 - Phoenix Contact

Description: MSTB 2,5 HC/ 6-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MSTB 2,5 HC/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB

Download 1924127 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1924127 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

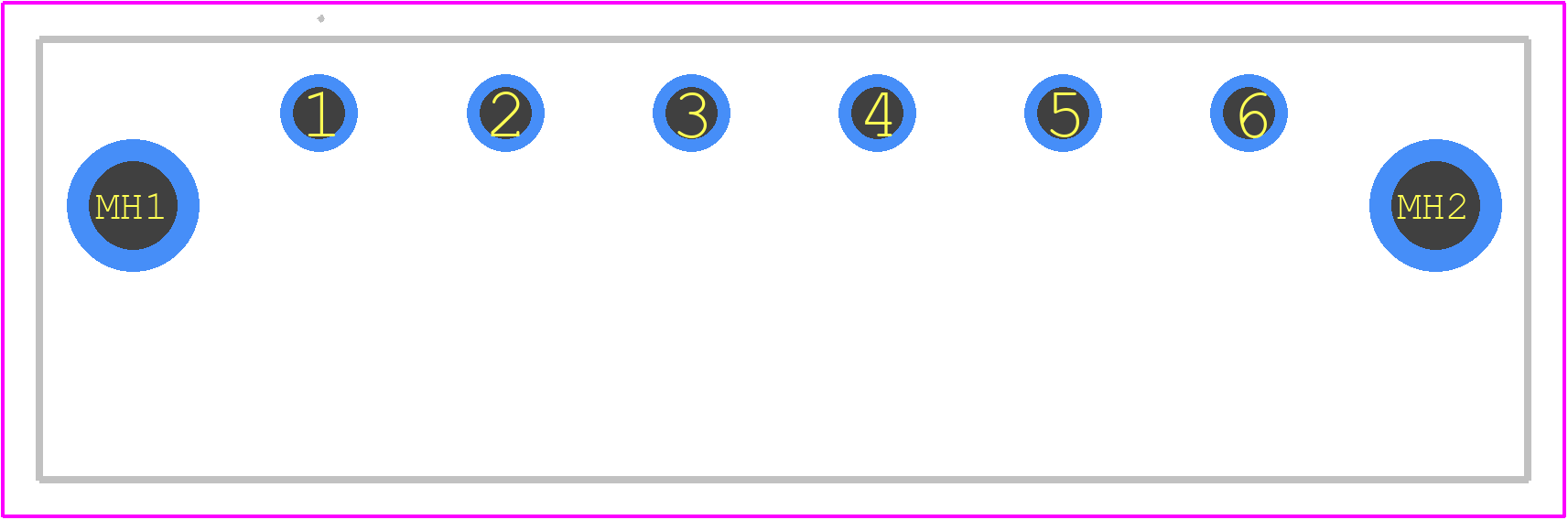

1924127 - Phoenix Contact PCB footprint - Other - Other - 1924127-2
click to zoom
3D Models
1924127 - Phoenix Contact - 3D model - Other - 1924127-2
click to zoom

1924127 Details

  • Manufacturer Part Number:

    1924127

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.19

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    16 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1924127 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1924127 is -40°C to 125°C.
  • Yes, the 1924127 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • The 1924127 is not certified for use in hazardous locations. If you need a product for hazardous locations, you should consider a different product or consult with Phoenix Contact for a custom solution.
  • The maximum wire size that can be connected to the 1924127 is 2.5 mm² (AWG 14).
  • Yes, the 1924127 is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.
