1924583 - Phoenix Contact

Description: MSTBV 2,5 HC/ 8-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: MSTBV 2,5 HC/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MST

Download 1924583 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1924583 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

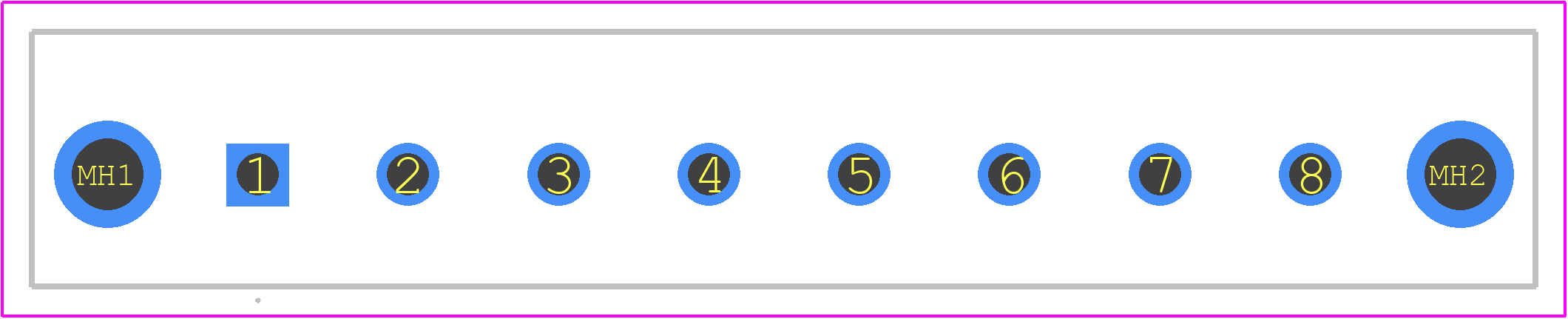

1924583 - Phoenix Contact PCB footprint - Other - Other - 1924583-1
click to zoom
3D Models
1924583 - Phoenix Contact - 3D model - Other - 1924583-1
click to zoom

1924583 Details

  • Manufacturer Part Number:

    1924583

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PA, UL 94V0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    16 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1924583 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's essential to consult the specific panel's documentation for precise torque values.
  • Yes, the 1924583 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure wiring to prevent damage.
  • The 1924583 connector has an IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to follow proper installation and sealing guidelines to maintain the IP rating.
  • The 1924583 connector is designed to operate within a temperature range of -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation.
  • Yes, the 1924583 connector is designed to be compatible with other Phoenix Contact products and some third-party components. However, it's essential to verify compatibility before integrating the connector into your system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1924583 Overview

Use the download button to access the 1924583 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19245, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
