Part Image

1924596 - Phoenix Contact

Description: MSTBV 2,5 HC/ 9-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: MSTBV 2,5 HC/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MST

Download 1924596 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1924596 - Phoenix Contact - PCB symbol
click to zoom

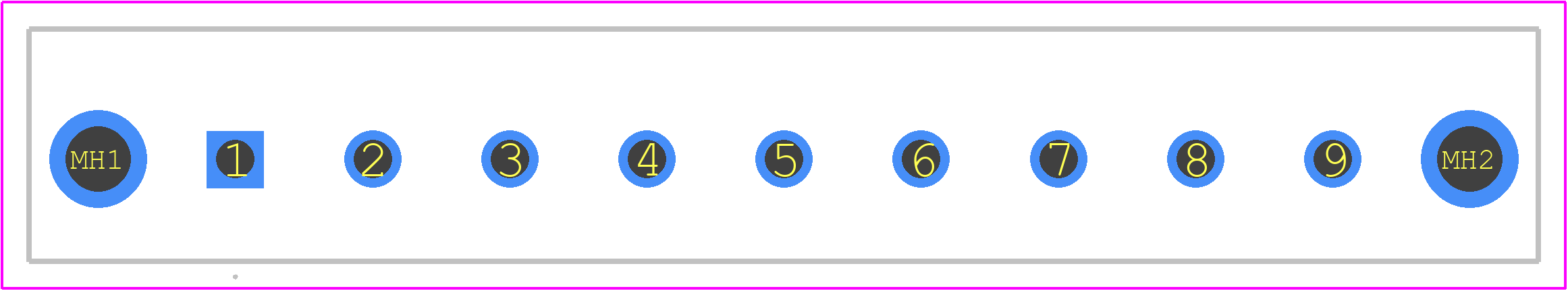

PCB Footprints
1924596 - Phoenix Contact PCB footprint - Other - Other - 1924596-1
click to zoom
3D Models
1924596 - Phoenix Contact - 3D model - Other - 1924596-1
click to zoom

1924596 Details

  • Manufacturer Part Number:

    1924596

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    16 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CCA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1924596 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1924596 is -40°C to 125°C, according to Phoenix Contact's documentation.
  • Yes, the 1924596 is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • The 1924596 has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper installation and sealing guidelines to ensure the product's reliability in humid or wet environments.
  • The recommended torque for the 1924596's screw terminals is 0.5 Nm to 1.5 Nm, depending on the specific application and wire size. It's essential to follow the manufacturer's guidelines to ensure reliable connections.
  • Yes, the 1924596 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1924596 Overview

Use the download button to access the 1924596 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19245, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
