1924678-1 - TE Connectivity

Description: Body Features: Connector & Keying Code AE | Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Signal Positions 26 | Number of Rows 2 | Number of Positions 26 | Contact Features: Mating Tab Thickness .025 INCH | Mating Tab Width .025 INCH | Mating Tab Width .64 MM | Contact Mating Area Plating Material Tin | Contact Type Tab | Mating Tab Thickness .64 MM | Contact Size .63mm | Dimensions: Profile Height from PCB 23.95 MM | Connector Length 44.4 MM | Connector Wi

Download 1924678-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

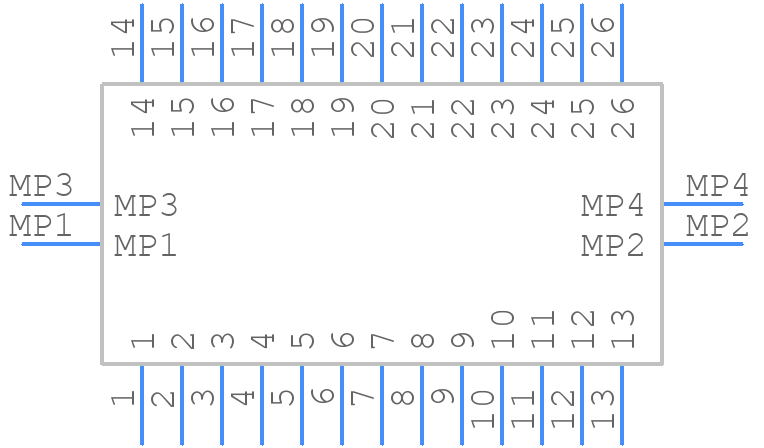

1924678-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

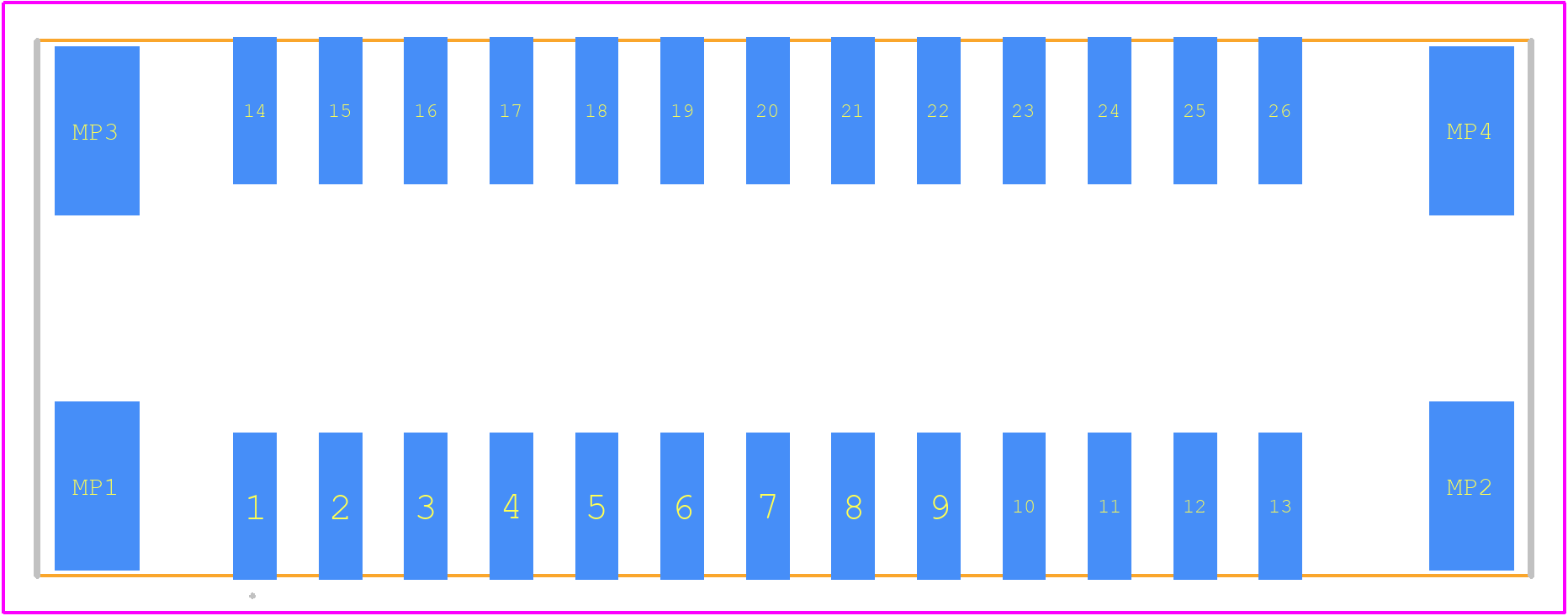

1924678-1 - TE Connectivity PCB footprint - Other - Other - 1924678-1-2
click to zoom
3D Models
1924678-1 - TE Connectivity - 3D model - Other - 1924678-1-2
click to zoom

1924678-1 Details

  • Manufacturer Part Number:

    1924678-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Body Breadth:

    0.626 inch

  • Body Depth:

    0.943 inch

  • Body Length:

    1.748 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    PCT-POLYESTER

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

1924678-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 1924678-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The operating temperature range for the 1924678-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 1924678-1 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for use in environments with exposure to harsh chemicals or prolonged immersion in water.
  • The 1924678-1 connector has a mating cycle life of 500 cycles. This means it can withstand 500 connect and disconnect cycles without compromising its performance or reliability.
