1930280000 - Weidmüller

Description: PCB connector (board connection), 630 V, 57 A, Pitch in mm: 7.62, Number of poles: 3, THT solder connection, Box

Download 1930280000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1930280000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

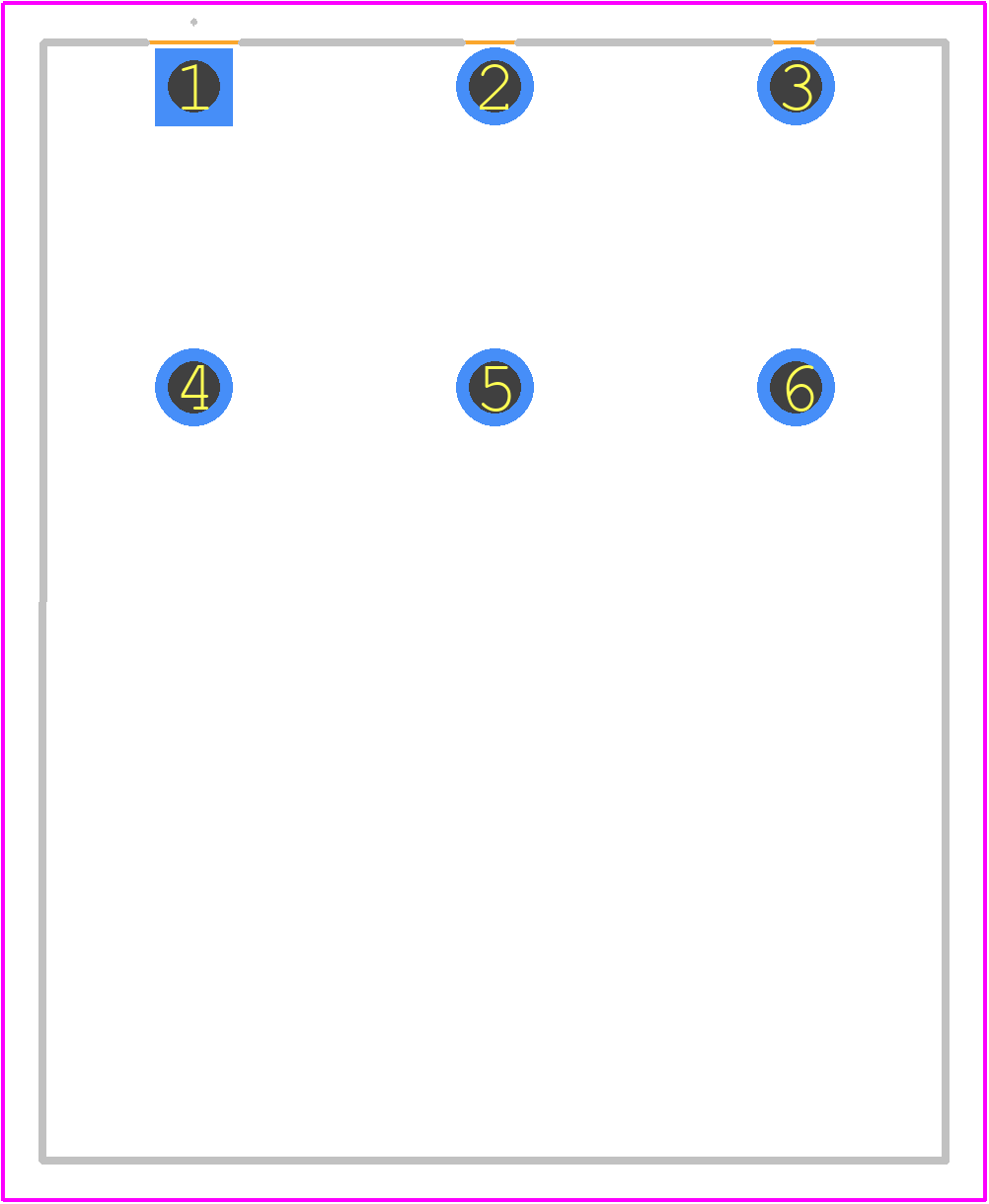

1930280000 - Weidmüller PCB footprint - Other - Other - 1930280000
click to zoom
3D Models
1930280000 - Weidmüller - 3D model - Other - 1930280000
click to zoom

1930280000 Details

  • Manufacturer Part Number:

    1930280000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    41 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1930280000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1930280000 is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1930280000 is designed for outdoor use and has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
  • The mating cycle for the 1930280000 is 500 cycles, which means it can be connected and disconnected up to 500 times without compromising its performance or reliability.
  • Yes, the 1930280000 is designed to withstand high-vibration applications, making it suitable for use in industrial environments where vibration is a concern.
  • Yes, the 1930280000 is RoHS and REACH compliant, which means it meets the European Union's regulations for the restriction of hazardous substances in electrical and electronic equipment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1930280000 Overview

Use the download button to access the 1930280000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19302, or try a keyword search, such as Terminals and Terminal Blocks
