1932601 - Phoenix Contact

Description: MKDSP 25/ 4-15,00 - Printed circuit board terminal, nominal current: 125 A, rated voltage (III/2): 1000 V, nominal cross section: 35 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: MKDSP 25, pitch: 15 mm, connection method: Screw connection with tension sleeve, screw head form: Z2L Slotted Pozidriv, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4.5 mm, number of solder pi

Download 1932601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

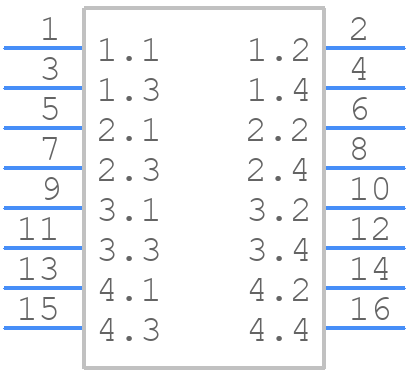

1932601 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

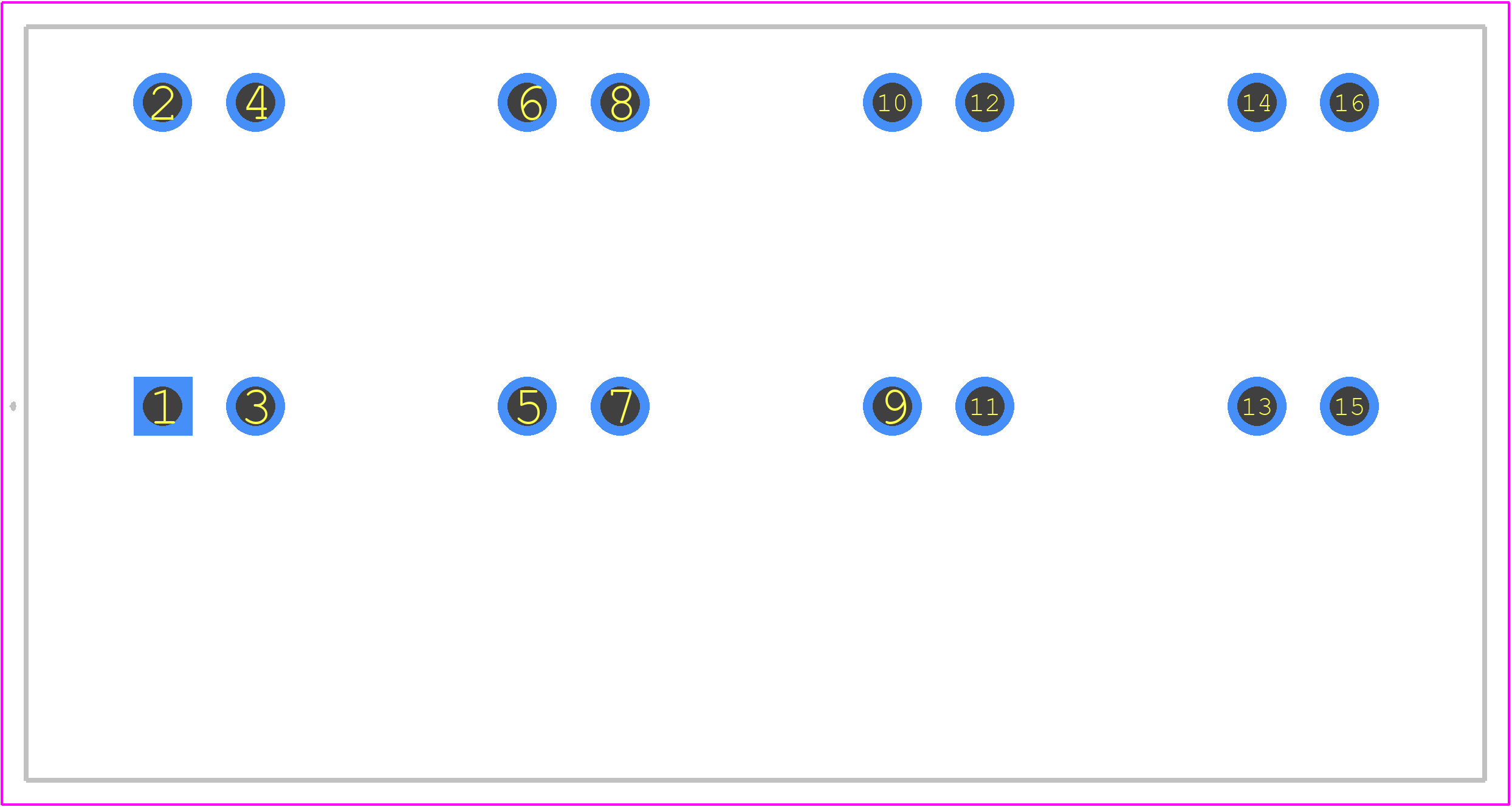

1932601 - Phoenix Contact PCB footprint - Other - Other - 1932601-2
click to zoom
3D Models
1932601 - Phoenix Contact - 3D model - Other - 1932601-2
click to zoom

1932601 Details

  • Manufacturer Part Number:

    1932601

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Slovakia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.58

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    125 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CB; CCA; CUL; GOST; SEV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    35 mm2

  • Wire Gauge:

    2 AWG

1932601 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the Phoenix Contact application notes for more detailed guidance.
  • Yes, the 1932601 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to maintain the connector's integrity.
  • The 1932601 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to consider additional protection measures, such as sealing or conformal coating, depending on the specific application.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge with some limitations. Consult Phoenix Contact's application notes or contact their technical support to determine the feasibility of using a different wire gauge.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces specified in the datasheet. Additionally, ensure the connector is properly aligned and the mating surfaces are clean and free of debris.
