1932605-1 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 1 x 1 | Number of Positions 20 | Number of Ports 1 | Contact Features: Contact Current Rating (Max) .5 AMP | Electrical Characteristics: Data Rate (Max) 4 GBS | Housing Features: Centerline (Pitch) .031 INCH | Centerline (Pitch) .8 MM | Operation/Application: Pluggable I/O Applications SFP | Circuit Application Signal | Other: EMI Containment Feature Type Internal/External EMI Springs | Included Lightpipe No | Product Type Features: Pluggable I/O Product Typ

Download 1932605-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

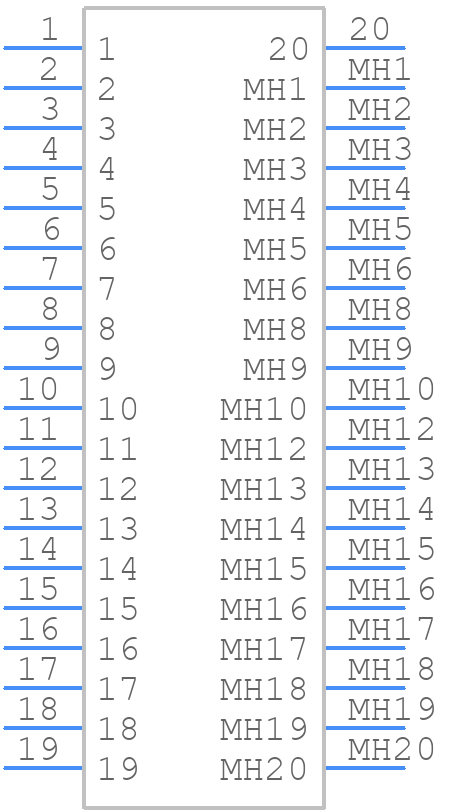

Symbol
1932605-1 - TE Connectivity - PCB symbol
click to zoom

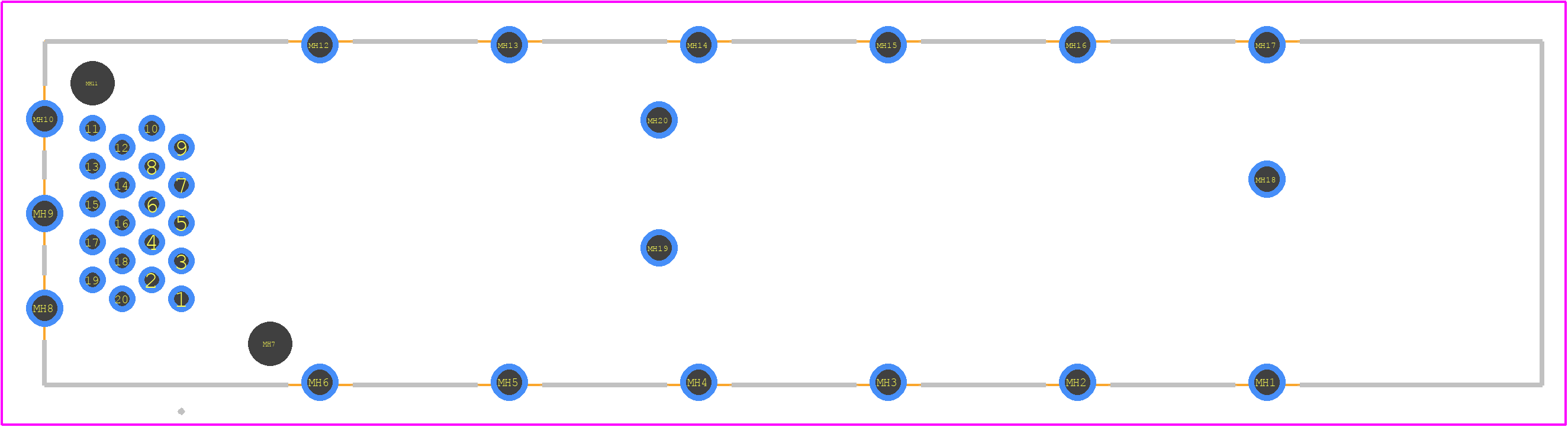

PCB Footprints
1932605-1 - TE Connectivity PCB footprint - Other - Other - 1932605-1-2
click to zoom
3D Models
1932605-1 - TE Connectivity - 3D model - Other - 1932605-1-2
click to zoom

1932605-1 Details

  • Manufacturer Part Number:

    1932605-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    10 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • Design Use:

    SIGNAL

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Rated Current:

    0.5 A

  • Terminal Type:

    COMPLIANT FIT

1932605-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1932605-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 1932605-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from cold storage to high-temperature industrial environments.
  • Yes, the 1932605-1 connector is part of TE Connectivity's modular connector family and is designed to be compatible with other products in the same family. This allows for easy integration and flexibility in system design.
  • The 1932605-1 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. This makes it suitable for use in harsh environments where exposure to moisture is a concern.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1932605-1 Overview

Use the download button to access the 1932605-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19326, or try a keyword search, such as Assembly Items

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
