1933273 - Phoenix Contact

Description: PST 1,3/11-5,0 - Pin strip, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 12 A (depends on the plug used), rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 11, number of rows: 1, number of positions: 11, number of connections: 11, product range: PST 1,3/..-V, pitch: 5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, plug-in system: COMBICON PST 1,3, locking: without, mounting me

Download 1933273 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1933273 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

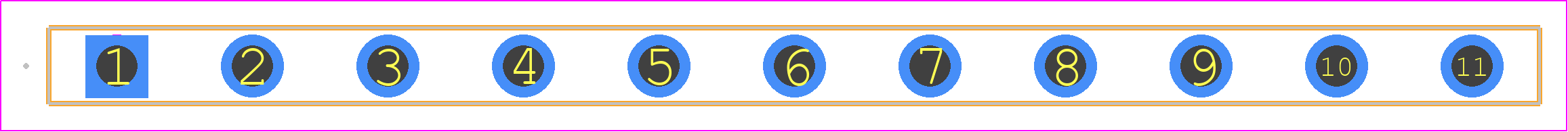

1933273 - Phoenix Contact PCB footprint - Other - Other - 1933273
click to zoom
3D Models
1933273 - Phoenix Contact - 3D model - Other - 1933273
click to zoom

1933273 Details

  • Manufacturer Part Number:

    1933273

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANADARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    11

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CUL; CB; EAC; EN; SEV; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1933273 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1933273 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 1933273 connector has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • Yes, the 1933273 connector is designed to accept stranded wires with a wire size range of 0.5 mm² to 2.5 mm².
  • The operating temperature range of the 1933273 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
