1933985 - Phoenix Contact

Description: ZFKDSA 1,5C-5,0- 6 - Printed circuit board terminal, nominal current: 16 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: ZFKDS(A) 1,5C, pitch: 5 mm, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed i

Download 1933985 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1933985 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

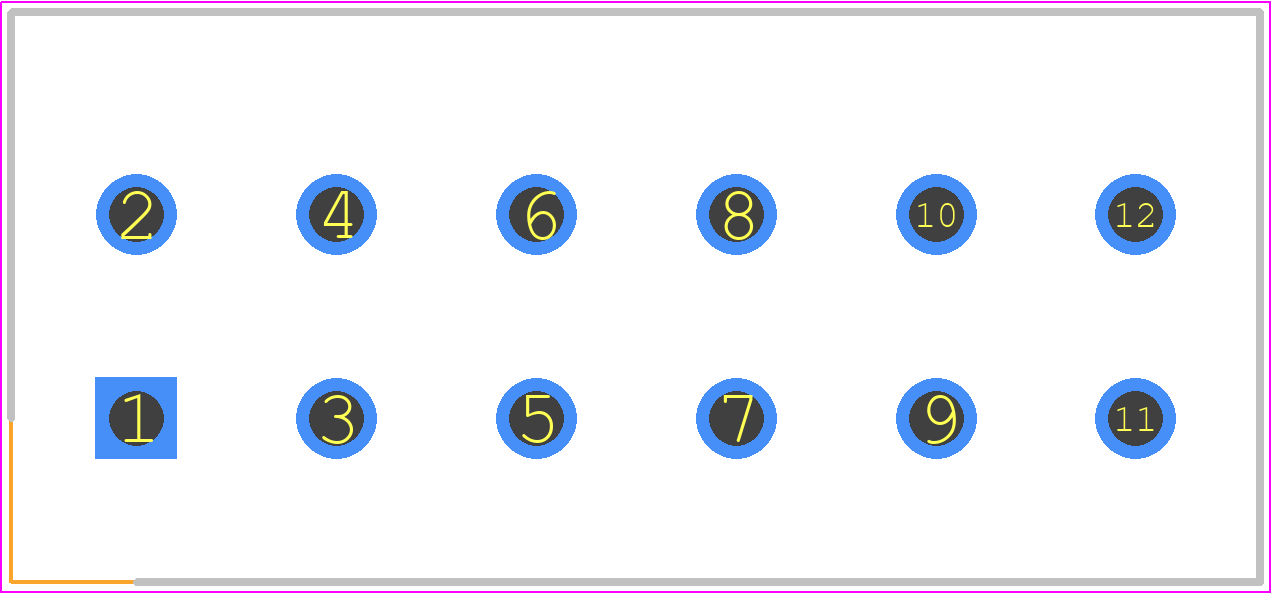

1933985 - Phoenix Contact PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 1933985
click to zoom
3D Models
1933985 - Phoenix Contact - 3D model - Header, Shrouded - Straight PTH Box - 1933985
click to zoom

1933985 Details

  • Manufacturer Part Number:

    1933985

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    16 A

  • Rated Voltage:

    400 V

  • Safety Approval:

    CUL;EAC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG

1933985 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's essential to consult the specific panel's instructions as well.
  • Yes, the 1933985 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure wiring to prevent damage.
  • The 1933985 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to follow proper installation and sealing guidelines to maintain the IP rating.
  • The 1933985 connector is designed to operate within a temperature range of -40°C to 125°C. However, it's essential to consider the specific application and potential temperature fluctuations.
  • Yes, the 1933985 connector is designed to be compatible with other Phoenix Contact products. However, when using third-party components, ensure compatibility and follow the manufacturer's guidelines.
