1934300000 - Weidmüller

Description: PCB terminal, 320 V, 32.5 A, Pitch in mm: 5.08, 6 mm², Number of poles: 6, Clamping yoke connection, THT solder connection, 90°, Box

Download 1934300000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1934300000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

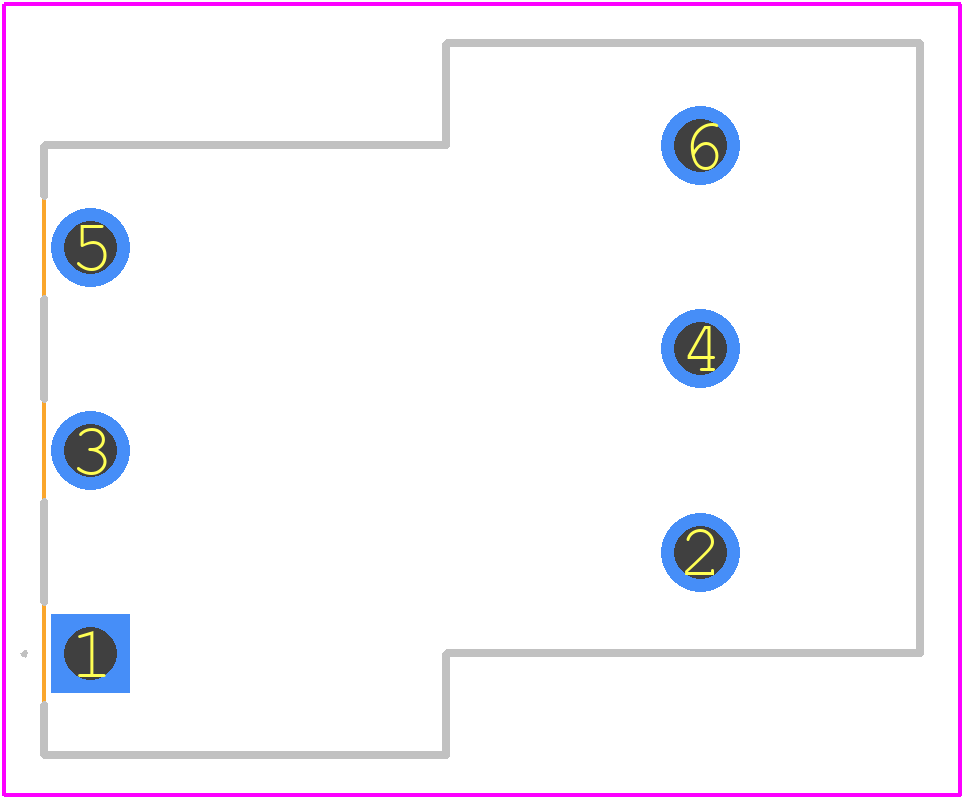

1934300000 - Weidmüller PCB footprint - Other - Other - 1934300000-2
click to zoom
3D Models
1934300000 - Weidmüller - 3D model - Other - 1934300000-2
click to zoom

1934300000 Details

  • Manufacturer Part Number:

    1934300000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1934300000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1934300000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1934300000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The recommended torque for the screw terminals on the 1934300000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller.
  • The 1934300000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1934300000 has an IP20 rating, which means it provides protection against solid objects larger than 12.5 mm and does not provide protection against water or moisture.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1934300000 Overview

Use the download button to access the 1934300000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19343, or try a keyword search, such as Terminals and Terminal Blocks
