1934301-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Pairs 24 | Number of Rows 9 | Pairs per Column 3 | Number of Signal Positions 48 | Backplane Architecture Traditional Backplane | Number of Columns 8 | PCB Mount Orientation Vertical | Stackable No | Number of Positions 72 | Contact Features: Contact Mating Area Plating Material Thickness 29.92 MICIN | Contact Shape & Form Rectangular | PCB Contact Termination Area Plating Material Tin | PCB Contact Termination Area Plating Mater

Download 1934301-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1934301-1 - TE Connectivity - PCB symbol
click to zoom

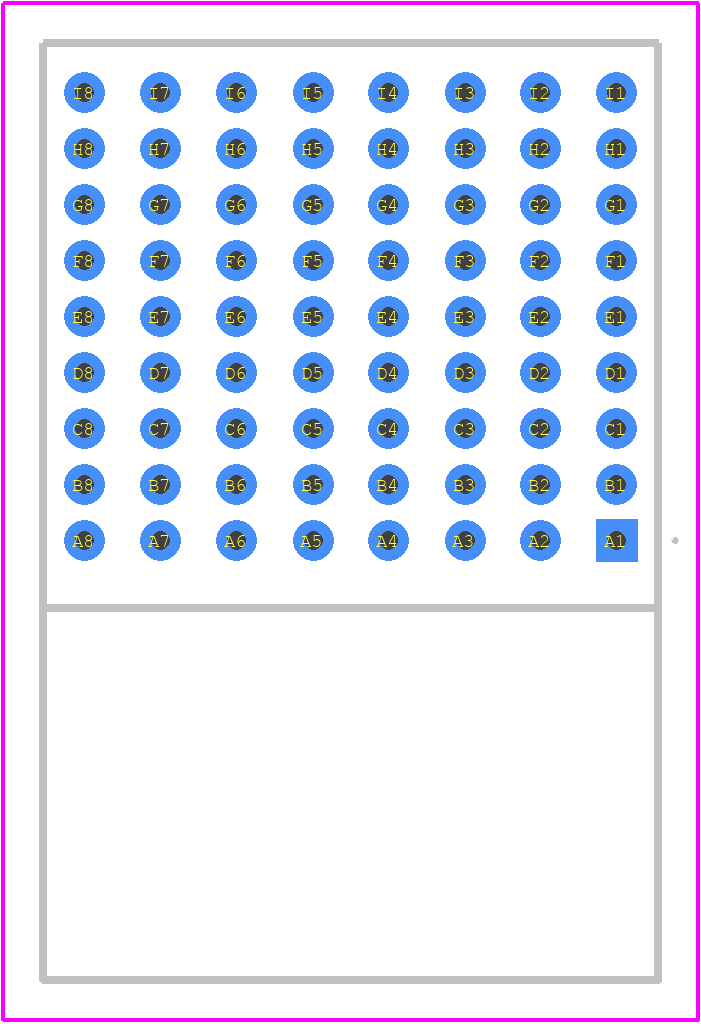

PCB Footprints
1934301-1 - TE Connectivity PCB footprint - Other - Other - 1934301-1-1
click to zoom
3D Models
1934301-1 - TE Connectivity - 3D model - Other - 1934301-1-1
click to zoom

1934301-1 Details

  • Manufacturer Part Number:

    1934301-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.75

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Depth:

    0.465 inch

  • Characteristic Impedance:

    100 Ω

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Row Spacing:

    0.055 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    9

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    29.92u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.098 inch

  • Terminal Pitch:

    1.9 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

1934301-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's guidelines for the specific connector series.
  • Yes, the 1934301-1 connector is designed to withstand vibrations and is suitable for use in harsh environments. However, it's essential to ensure proper mounting and securement to prevent damage or disconnection.
  • The operating temperature range for the 1934301-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's crucial to consider the specific application requirements and potential derating factors that may affect the connector's performance.
  • The 1934301-1 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and protection to maintain the connector's integrity in harsh environments.
  • The 1934301-1 connector is designed for use with specific wire gauges and types. It's essential to consult the datasheet and TE Connectivity's guidelines to ensure compatibility and proper termination. Using an incompatible wire gauge or type may affect the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1934301-1 Overview

Use the download button to access the 1934301-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19343, or try a keyword search, such as Headers and Edge Type Connectors
