1934344-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Rows 9 | Number of Columns 16 | PCB Mount Orientation Vertical | Stackable No | Backplane Architecture Traditional Backplane | Number of Positions 144 | Pairs per Column 3 | Number of Signal Positions 96 | Number of Pairs 48 | Contact Features: PCB Contact Termination Area Plating Material Finish Matte | PCB Contact Termination Area Plating Material Tin | Contact Shape & Form Rectangular | Contact Mating Area Length .236 INCH | P

Download 1934344-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1934344-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

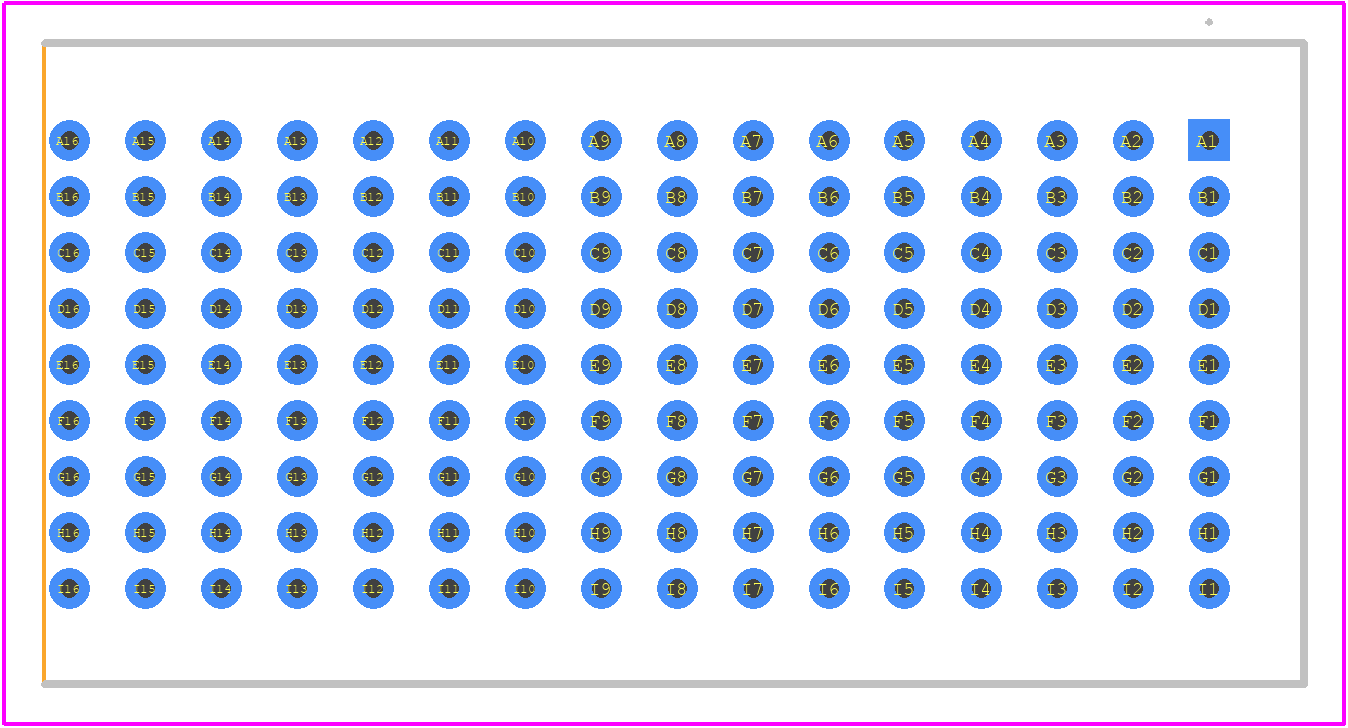

1934344-1 - TE Connectivity PCB footprint - Other - Other - 1934344-1-2
click to zoom
3D Models
1934344-1 - TE Connectivity - 3D model - Other - 1934344-1-2
click to zoom

1934344-1 Details

  • Manufacturer Part Number:

    1934344-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.75

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Depth:

    0.465 inch

  • Characteristic Impedance:

    100 Ω

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Row Spacing:

    0.055 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    9

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    29.92u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.098 inch

  • Terminal Pitch:

    1.9 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

1934344-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1934344-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 1934344-1 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains protected in harsh environmental conditions.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1934344-1 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow proper wire stripping and termination procedures to prevent damage to the connector or wire.
  • Yes, when designing the PCB layout, ensure that the connector's footprint is accurately replicated, and the PCB material is compatible with the connector's soldering process. Additionally, consider the connector's height and width when designing the PCB layout to ensure proper clearance and avoid interference with other components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1934344-1 Overview

Use the download button to access the 1934344-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19343, or try a keyword search, such as Headers and Edge Type Connectors
