1935226 - Phoenix Contact

Description: PT 1,5/ 8-5,0-H - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: PT 1,5/..-H, pitch: 5 mm, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging

Download 1935226 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1935226 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

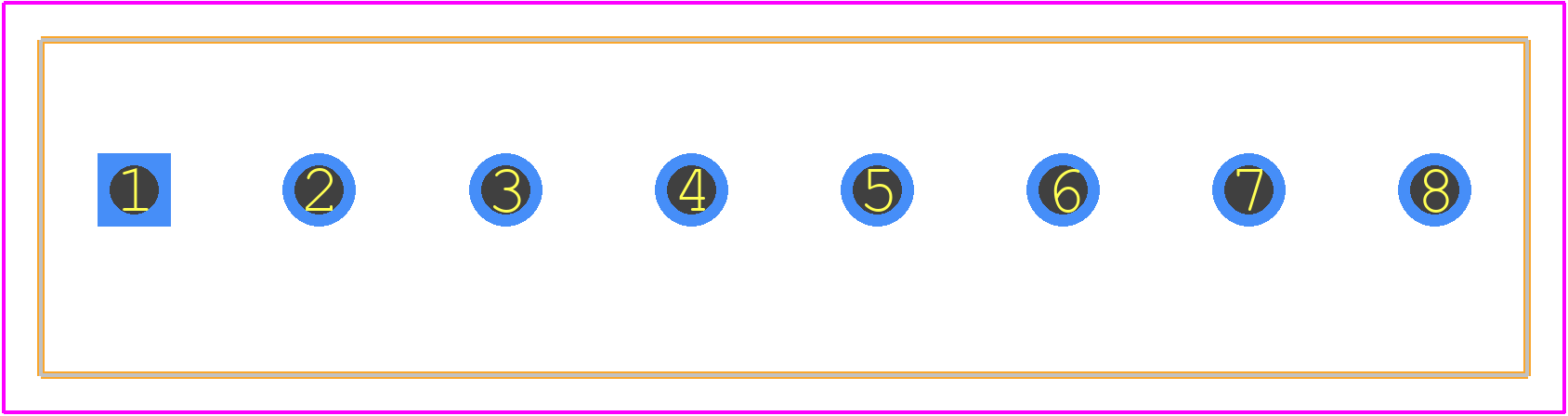

1935226 - Phoenix Contact PCB footprint - Other - Other - 1935226-2
click to zoom
3D Models
1935226 - Phoenix Contact - 3D model - Other - 1935226-2
click to zoom

1935226 Details

  • Manufacturer Part Number:

    1935226

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    17.5 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG

1935226 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact manual.
  • Yes, the 1935226 connector is designed to withstand vibrations up to 10 g according to IEC 61373, making it suitable for high-vibration applications.
  • Yes, the 1935226 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and accessories.
  • The operating temperature range for the 1935226 connector is -40°C to 125°C, making it suitable for use in a wide range of environments.
  • Yes, the 1935226 connector is designed to be resistant to moisture and humidity, with an IP67 rating, making it suitable for use in humid or wet environments.
