1935255 - Phoenix Contact

Description: PT 1,5/11-5,0-H - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 11, number of rows: 1, number of positions per row: 11, product range: PT 1,5/..-H, pitch: 5 mm, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packagi

Download 1935255 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1935255 - Phoenix Contact - PCB symbol
click to zoom

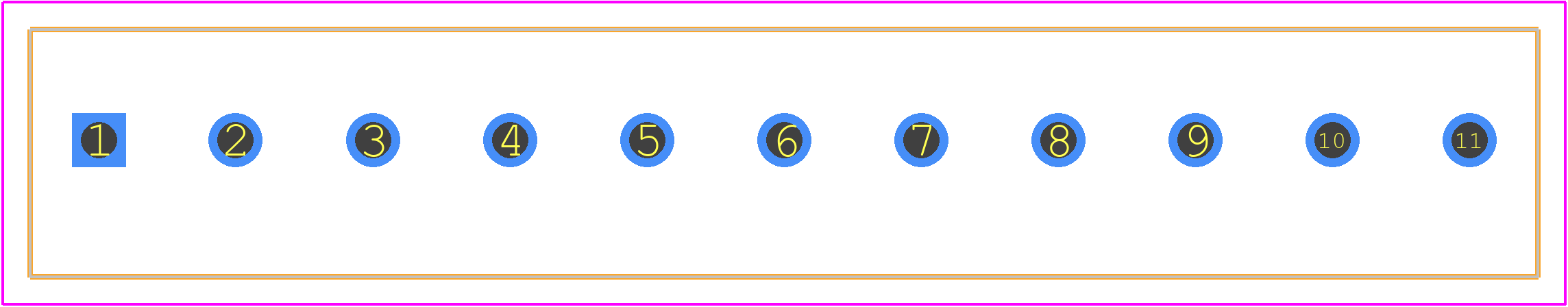

PCB Footprints
1935255 - Phoenix Contact PCB footprint - Other - Other - 1935255-5
click to zoom
3D Models
1935255 - Phoenix Contact - 3D model - Other - 1935255-5
click to zoom

1935255 Details

  • Manufacturer Part Number:

    1935255

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    11

  • Rated Current:

    17.5 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG

1935255 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the 1935255 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1935255 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and cable management to maintain the IP rating.
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to stick to the recommended wire gauge range to ensure optimal performance.
  • To ensure proper EMI shielding, ensure the connector's shield is properly connected to the panel or chassis, and use a shielded cable that meets the application's EMI requirements.
