1935307 - Phoenix Contact

Description: PT 1,5/16-5,0-H - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 16, number of rows: 1, number of positions per row: 16, product range: PT 1,5/..-H, pitch: 5 mm, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packagi

Download 1935307 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1935307 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

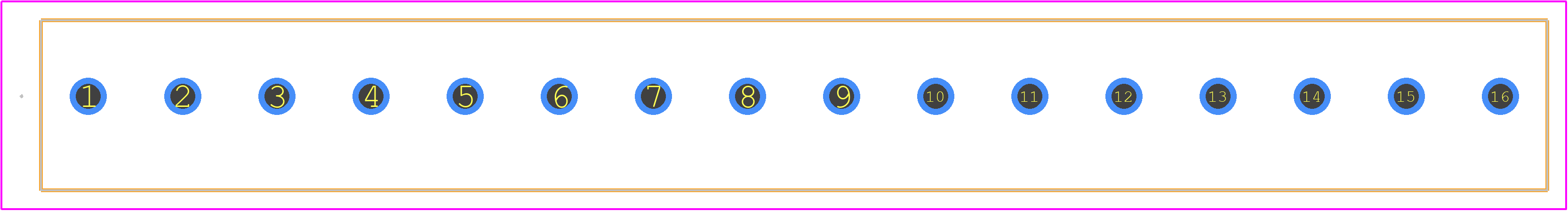

1935307 - Phoenix Contact PCB footprint - Other - Other - 1935307-1
click to zoom
3D Models
1935307 - Phoenix Contact - 3D model - Other - 1935307-1
click to zoom

1935307 Details

  • Manufacturer Part Number:

    1935307

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    17.5 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG

1935307 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm to 1.2 Nm, but it's essential to consult the specific panel manufacturer's guidelines as well.
  • Yes, the 1935307 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure wiring to prevent damage.
  • The 1935307 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection of the connector and wiring.
  • Yes, the 1935307 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and connectors. However, compatibility with third-party components should be verified before use.
  • The 1935307 connector is designed to operate within a temperature range of -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation.
