1939115-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Rows 1 | PCB Mount Orientation Right Angle | Number of Positions 9 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Layout Inline | Contact Base Material Copper Alloy | Contact Current Rating (Max) .5 AMP | Contact Underplating Material Nickel | Contact Mating Area Plating Material Thickness .2 – .5 MICM | Contact Mating Area Plating Material Gold | Dimensions: Profile Height from PCB 2.95 MM | Pr

Download 1939115-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

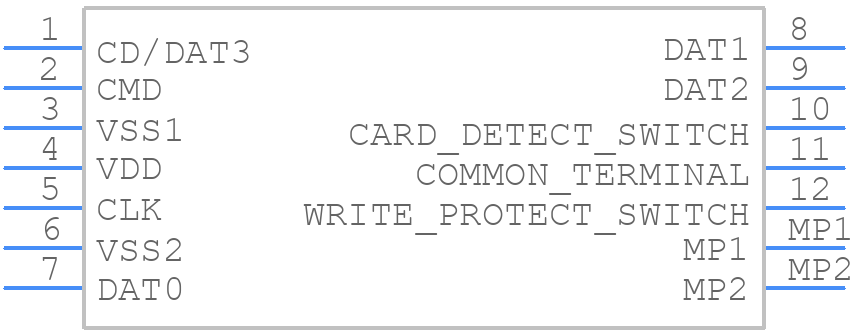

1939115-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

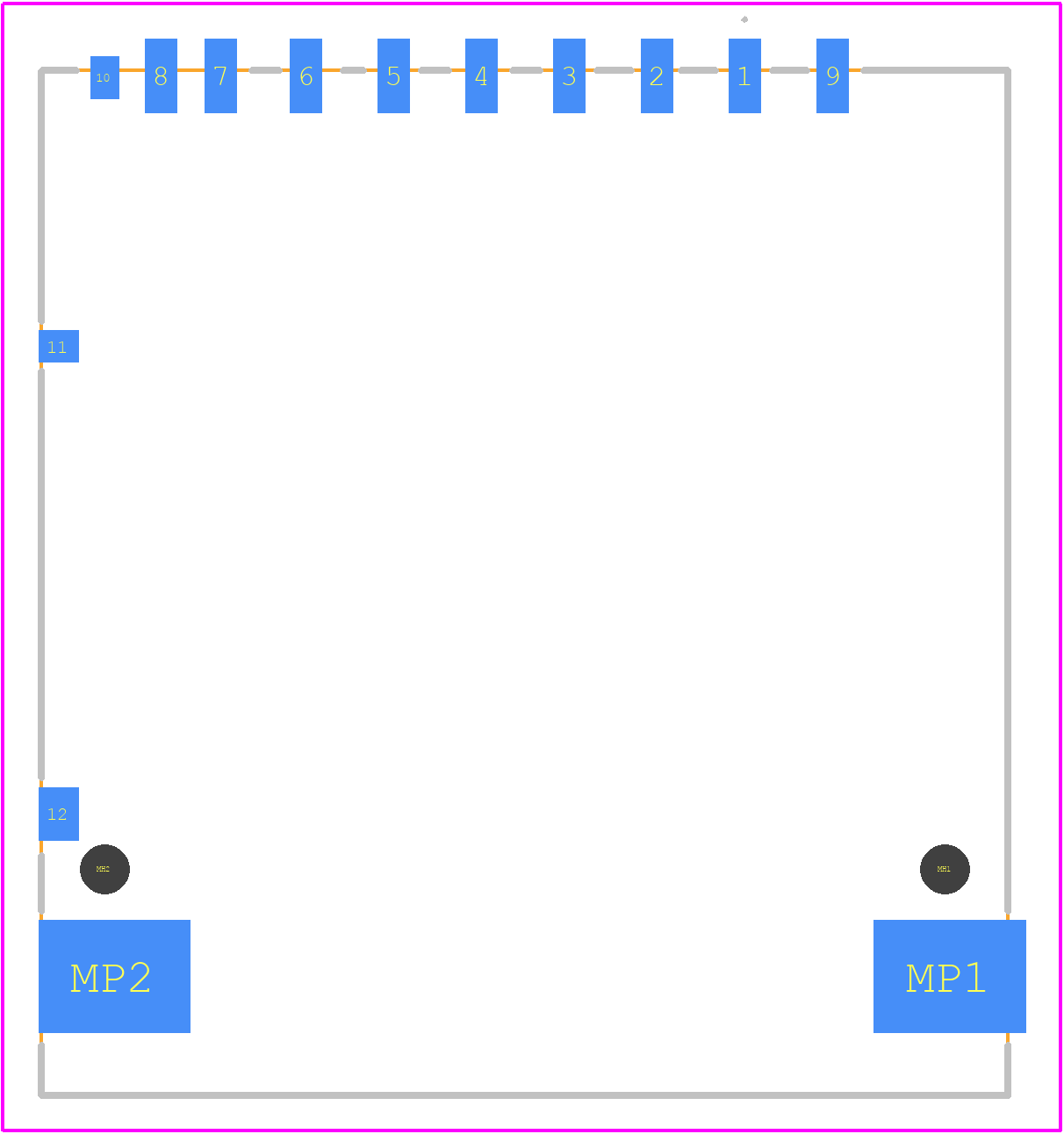

1939115-1 - TE Connectivity PCB footprint - Other - Other - 1939115-1-3
click to zoom
3D Models
1939115-1 - TE Connectivity - 3D model - Other - 1939115-1-3
click to zoom

1939115-1 Details

  • Manufacturer Part Number:

    1939115-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.11 inch

  • Body Depth:

    1.169 inch

  • Body Length:

    1.083 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    COMPRESSION

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Pitch:

    0.067 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Panel Mount:

    NO

  • Plating Thickness:

    19.69u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Shell Material:

    COPPER ALLOY

  • Terminal Pitch:

    1.7 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

1939115-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 1939115-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1939115-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1939115-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to consult TE Connectivity's environmental testing data and application notes for specific guidance on chemical resistance and exposure.
  • The recommended wire size for the 1939115-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a temperature rating that matches the connector's operating temperature range. Consult TE Connectivity's application notes for specific guidance on wire selection.
