Part Image

1939403-3 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Sections 1 | Number of Positions 8 | PCB Mount Orientation Vertical | Number of Signal Positions 8 | Number of Rows 2 | Contact Features: Mating Tab Thickness .64 MM | Contact Mating Area Plating Material Tin | Mating Tab Thickness .025 INCH | Mating Tab Width .64 MM | Mating Tab Width .025 INCH | Contact Type Tab | Contact Size .64mm | Dimensions: Connector Length .638 INCH | Connector Width 23.8 MM | Connector Width .937 INCH |

Download 1939403-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1939403-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

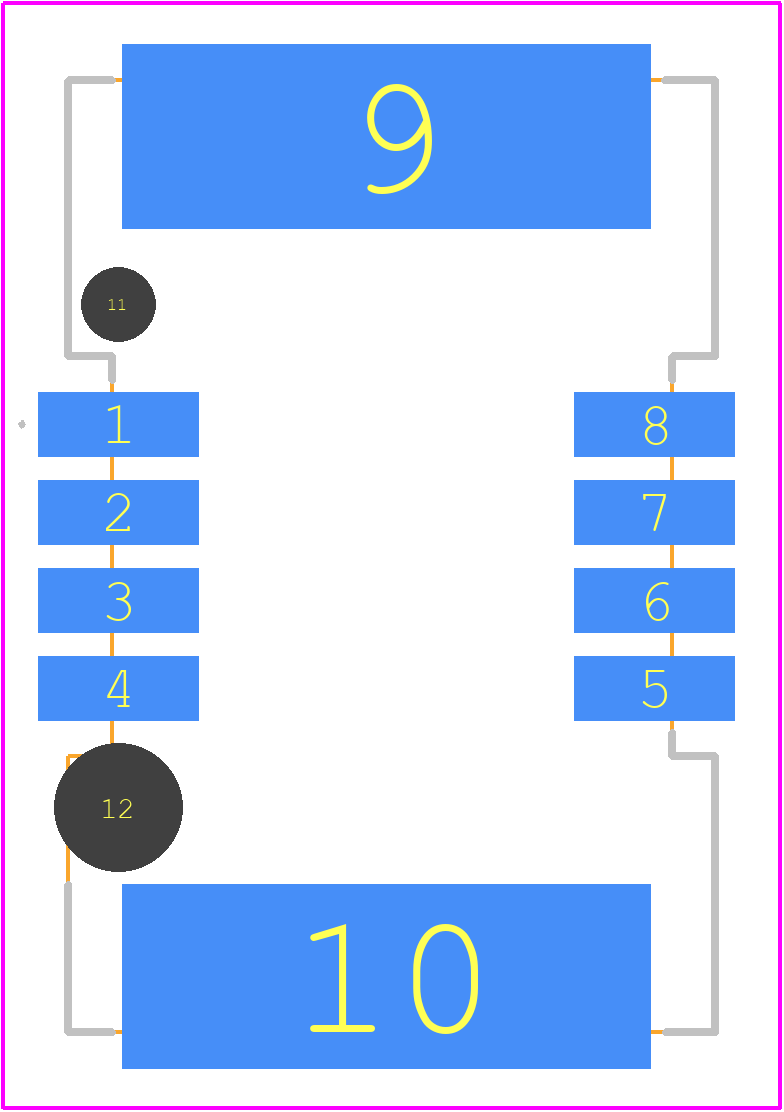

1939403-3 - TE Connectivity PCB footprint - Other - Other - 1939403-3-2
click to zoom
3D Models
1939403-3 - TE Connectivity - 3D model - Other - 1939403-3-2
click to zoom

1939403-3 Details

  • Manufacturer Part Number:

    1939403-3

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.9

  • Body Breadth:

    0.937 inch

  • Body Length:

    0.638 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SURFACE MOUNT

  • UL Flammability Code:

    94V-0

1939403-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 1939403-3 connector is designed to withstand high-vibration environments, but it's recommended to consult with TE Connectivity's application engineers for specific guidance.
  • The operating temperature range for the 1939403-3 connector is -40°C to 125°C (-40°F to 257°F).
  • The 1939403-3 connector is designed to be resistant to harsh environments, but it's recommended to consult with TE Connectivity's application engineers to determine the suitability for specific environmental conditions.
  • While the 1939403-3 connector is designed for AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's recommended to consult with TE Connectivity's application engineers to determine the suitability for specific wire sizes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1939403-3 Overview

Use the download button to access the 1939403-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19394, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
