194-10MST - CTS

194-10MST Details

• Manufacturer Part Number:

  194-10MST

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.40

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  CTS Corporation

• YTEOL:

  5.7

• Actuator Length:

  0.045 inch

• Actuator Type:

  PIANO TYPE

• Additional Feature:

  SHIP AT OFF POSN,TOP TAPE SEAL

• Body Breadth:

  9.65 mm

• Body Height:

  7.9 mm

• Body Length or Diameter:

  27.58 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact Current(DC)-Max:

  0.05 A

• Contact (DC) Max Rating R Load:

  .05A@24VDC

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  7000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switch Sections:

  10

• Operating Temperature-Max:

  70 °C

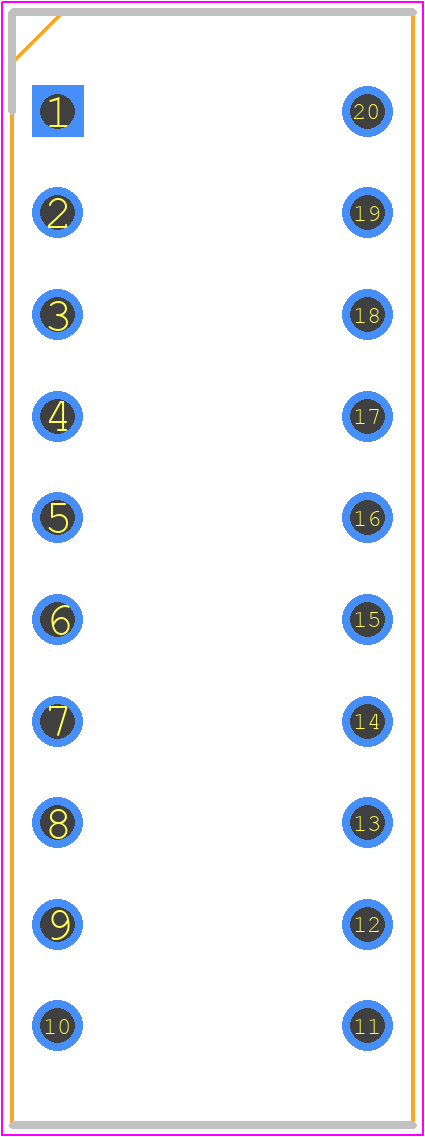

• PCB Hole Count:

  20

• Sealing:

  TOP TAPE SEALED

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPST

• Switch Type:

  PIANO DIP SWITCH

• Terminal Finish:

  Gold (Au)

• Terminal Length:

  0.15 inch

• Termination Type:

  SOLDER
