CTS Corporation provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper mounting, thermal management, and signal integrity.
The 194-6MST has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to implement proper thermal management techniques, such as heat sinks, thermal vias, and thermal interface materials, to keep the device within its operating temperature range.
CTS Corporation recommends following the JEDEC J-STD-020 standard for soldering the 194-6MST. This standard outlines the recommended soldering temperature, time, and techniques to ensure reliable connections and minimize the risk of damage to the device.
The 194-6MST is designed to meet the requirements of various industries, including automotive and industrial. However, it's essential to evaluate the device's performance in your specific application and environment. CTS Corporation may provide additional information or guidance on using the 194-6MST in high-vibration or high-shock environments.
CTS Corporation provides troubleshooting guides and application notes that can help identify and resolve common issues with the 194-6MST. Additionally, engineers can use standard debugging techniques, such as signal analysis and voltage measurements, to identify the root cause of the problem.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
194-6MST Overview

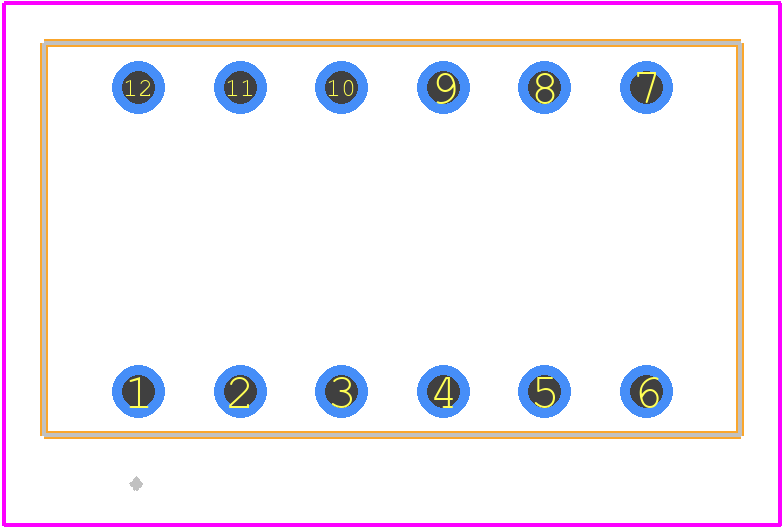

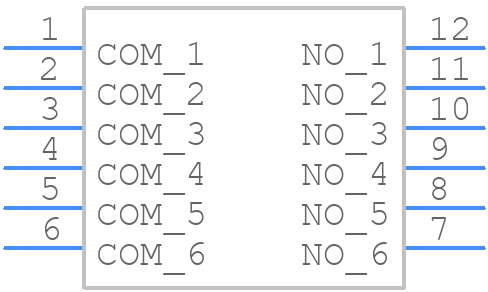

Use the download button to access the 194-6MST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 194-6,
or try a keyword search, such as DIP Switches
Suggested Parts
If you searched for 194-6MST, you might also be interested in these parts:
