1945193 - Phoenix Contact

Description: PST 1,0/12-3,5 - Pin strip, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 8 A (depends on the plug used), rated voltage (III/2): 250 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: PST 1,0/..-V, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm, plug-in system: COMBICON PST 1,0, locking: without, mounting m

Download 1945193 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1945193 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

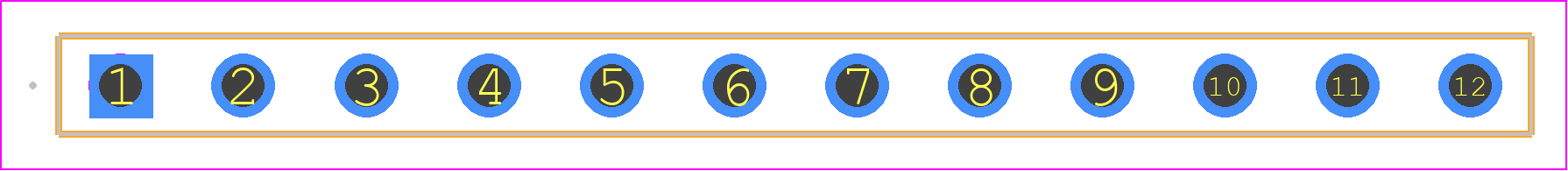

1945193 - Phoenix Contact PCB footprint - Other - Other - 1945193
click to zoom
3D Models
1945193 - Phoenix Contact - 3D model - Other - 1945193
click to zoom

1945193 Details

  • Manufacturer Part Number:

    1945193

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.98

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1945193 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1945193 is designed to withstand vibrations and shocks according to DIN EN 61373. However, it's essential to ensure proper mounting and secure wiring to prevent damage.
  • The 1945193 has a protection rating of IP20, which means it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider a different product with a higher IP rating.
  • It's not recommended to use the 1945193 with aluminum wires, as they can cause corrosion and reduce the connector's lifespan. Instead, use copper or copper-alloy wires for optimal performance.
  • The 1945193 is designed to operate within a temperature range of -40°C to 125°C. However, the maximum operating temperature may vary depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1945193 Overview

Use the download button to access the 1945193 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19451, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
