1945216 - Phoenix Contact

Description: PST 1,0/14-3,5 - Pin strip, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 8 A (depends on the plug used), rated voltage (III/2): 250 V, contact surface: Sn, contact connection type: Pin, number of potentials: 14, number of rows: 1, number of positions: 14, number of connections: 14, product range: PST 1,0/..-V, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm, plug-in system: COMBICON PST 1,0, locking: without, mounting m

Download 1945216 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1945216 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

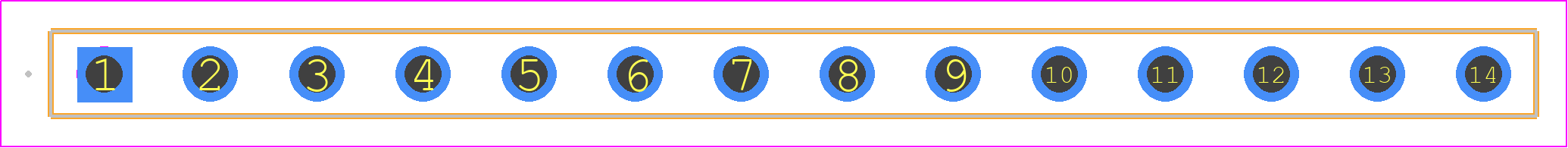

1945216 - Phoenix Contact PCB footprint - Other - Other - 1945216
click to zoom
3D Models
1945216 - Phoenix Contact - 3D model - Other - 1945216
click to zoom

1945216 Details

  • Manufacturer Part Number:

    1945216

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.66

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    14

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1945216 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1945216 is -40°C to 125°C.
  • Yes, the 1945216 is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 1945216 is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10g.
  • The recommended torque for the screw terminals on the 1945216 is 0.5 Nm to 1.5 Nm.
  • Yes, the 1945216 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
