1952885 - Phoenix Contact

Description: MCDNV 1,5/12-G1-3,5 P26THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 24, number of rows: 2, number of positions: 12, number of connections: 24, product range: MCDNV 1,5/..-G1-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC

Download 1952885 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

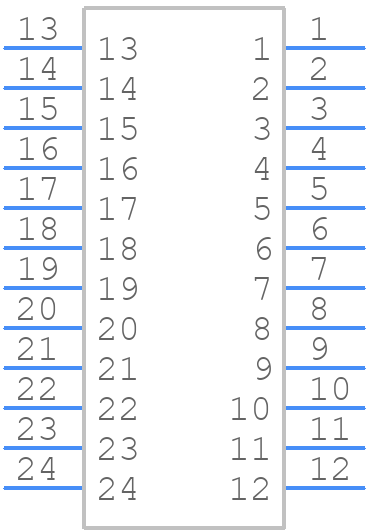

1952885 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

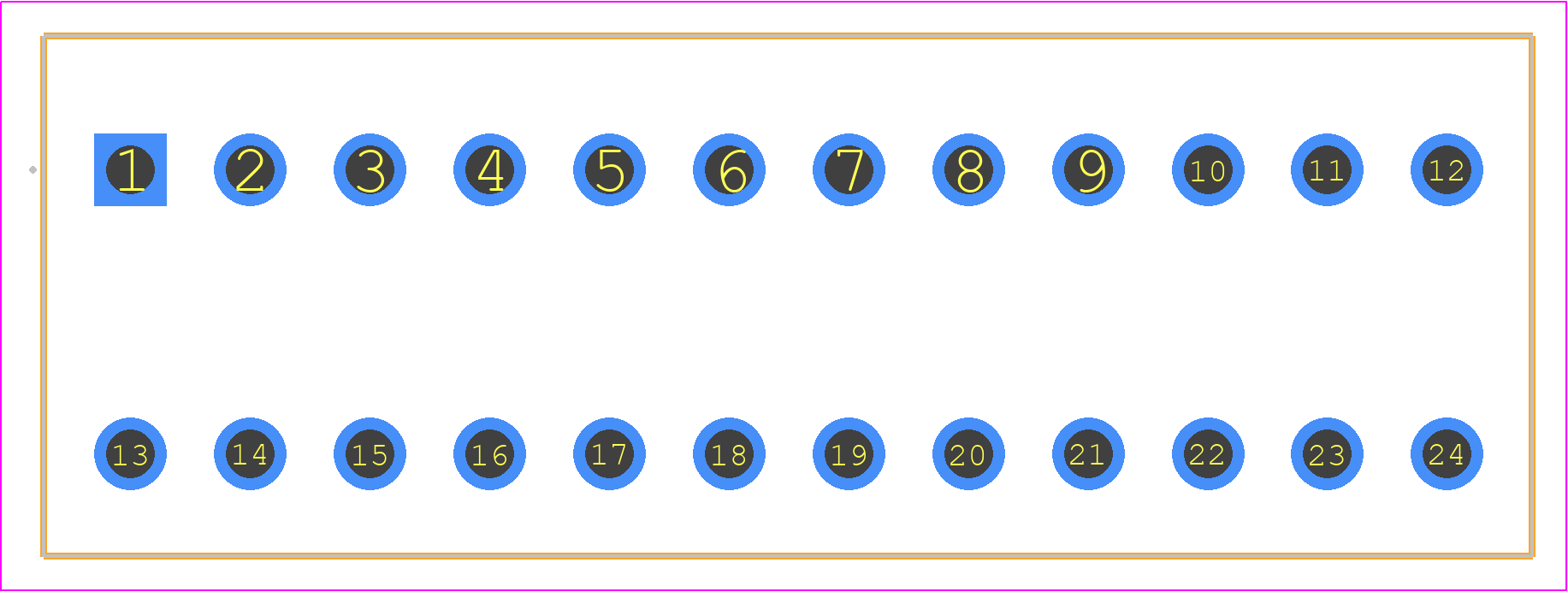

1952885 - Phoenix Contact PCB footprint - Other - Other - 1952885
click to zoom
3D Models
1952885 - Phoenix Contact - 3D model - Other - 1952885
click to zoom

1952885 Details

  • Manufacturer Part Number:

    1952885

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    LCP; 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    12

  • Rated Current:

    6 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1952885 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 1952885 connector is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1952885 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The 1952885 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For outdoor or harsh environment use, consider using a connector with a higher IP rating or additional protection measures such as conformal coating or sealing.
  • While the datasheet specifies wire sizes, it's possible to use the 1952885 connector with other wire sizes. However, it's essential to consult with Phoenix Contact or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the application's electrical and mechanical requirements.
  • Yes, as with any electrical connector, it's essential to follow proper safety guidelines when using the 1952885 connector. Ensure proper wiring, avoid over-tightening or under-tightening of screw terminals, and follow the recommended torque values to prevent electrical shock or fire hazards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1952885 Overview

Use the download button to access the 1952885 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19528, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
