1953583 - Phoenix Contact

Description: MCDN 1,5/ 8-G1-3,5 RNP26THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: MCDN 1,5/..-G1-RN-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON F

Download 1953583 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1953583 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

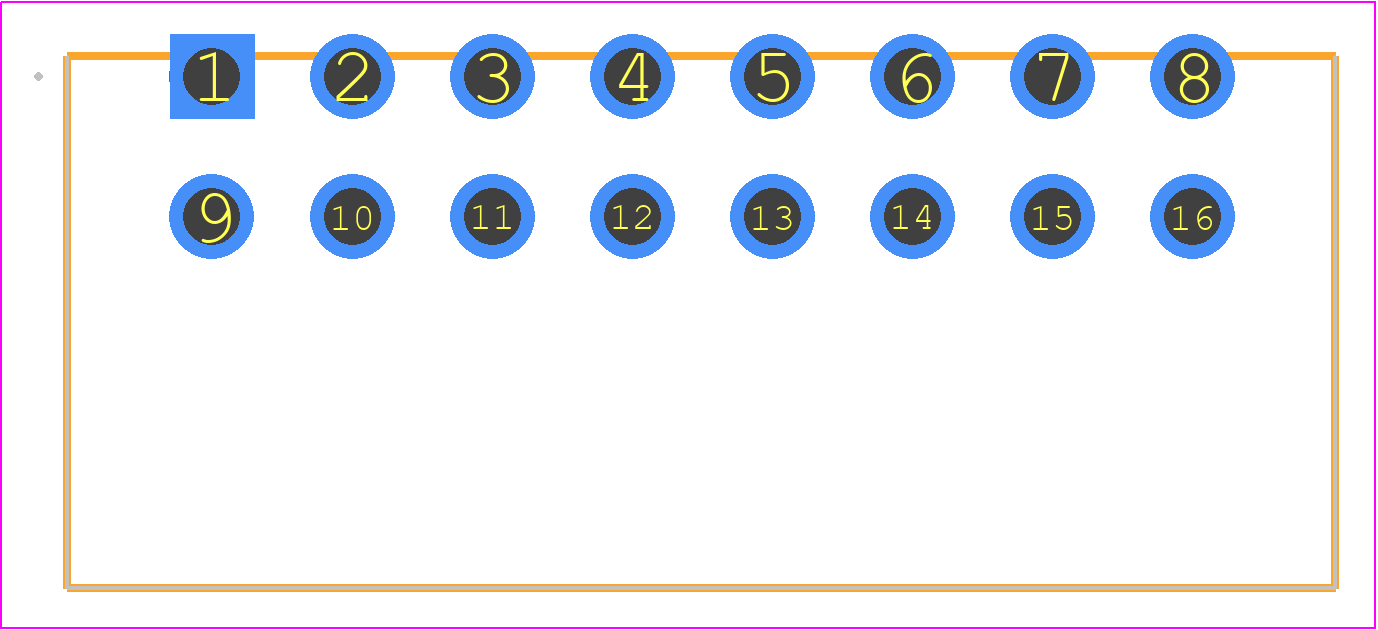

1953583 - Phoenix Contact PCB footprint - Other - Other - 1953583
click to zoom
3D Models
1953583 - Phoenix Contact - 3D model - Other - 1953583
click to zoom

1953583 Details

  • Manufacturer Part Number:

    1953583

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Bulgaria

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.91

  • Additional Feature:

    LCP, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1953583 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 1953583 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs).
  • Yes, the 1953583 connector is designed to withstand high-vibration applications. It meets the IEC 61373 Category 1B standard for vibration resistance.
  • Yes, the 1953583 connector has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • It is not recommended to use wire sizes other than those specified in the datasheet. Using wires with smaller or larger diameters may affect the connector's performance and reliability.
  • No, the screw terminals on the 1953583 connector are not self-lifting. You need to use a screwdriver to secure the wires.
