1954289-3 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Connector Contact Load Condition Fully Loaded | PCB Mount Orientation Horizontal | Number of Positions 6 | Number of Rows 1 | Stackable No | Board-to-Board Configuration Co-Planar | Contact Features: Contact Type Hermaphroditic | Contact Layout Inline | Contact Mating Area Plating Material Tin | Mating Tab Width 3.05 MM | Mating Tab Width .12 INCH | Mating Tab Thickness .4 MM | Contact Current Rating (Max) 6 AMP | Contact Base Material C

Download 1954289-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1954289-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

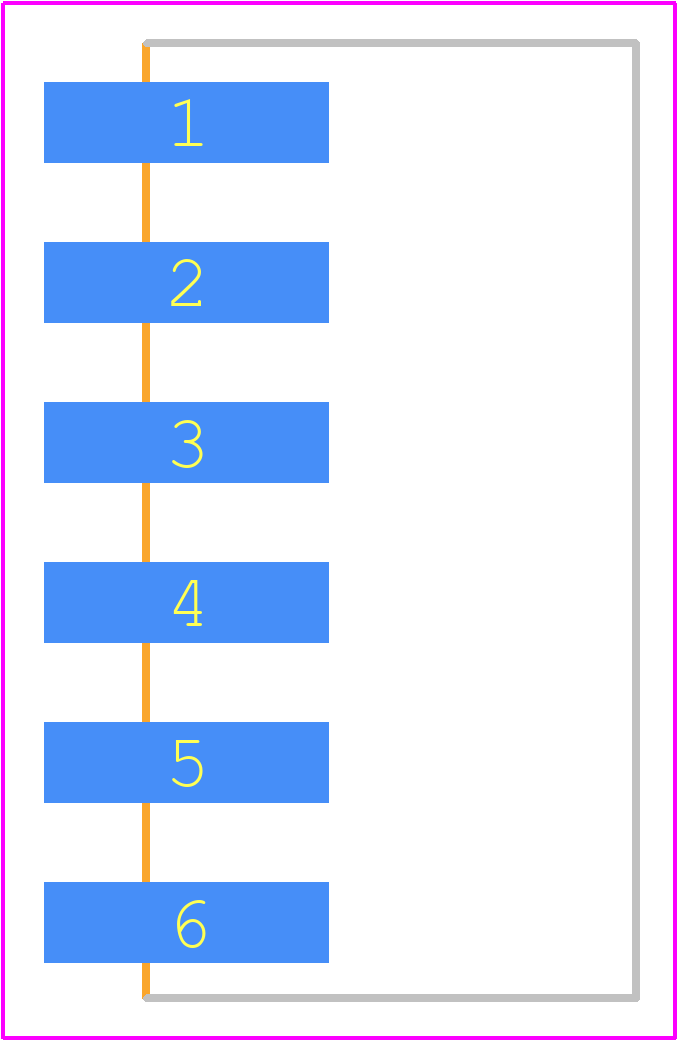

1954289-3 - TE Connectivity PCB footprint - Other - Other - 1954289-3-2
click to zoom
3D Models
1954289-3 - TE Connectivity - 3D model - Other - 1954289-3-2
click to zoom

1954289-3 Details

  • Manufacturer Part Number:

    1954289-3

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    LOW PROFILE

  • Body Depth:

    0.154 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    HERMAPHRODITIC

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1500VAC V

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    6 A

  • Rated Voltage:

    125 V

  • Reference Standard:

    CSA, LR, U

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

1954289-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 1954289-3 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1954289-3 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1954289-3 connector has a IP67 rating, which means it can withstand temporary immersion in water and exposure to certain chemicals. However, it's crucial to consult TE Connectivity's environmental testing data and application notes for specific guidance on using the connector in harsh environments.
  • The recommended wire size for the 1954289-3 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a compatible insulation material and temperature rating to ensure reliable connections. Consult TE Connectivity's application notes for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1954289-3 Overview

Use the download button to access the 1954289-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19542, or try a keyword search, such as Power Connectors
