1954951 - Phoenix Contact

Description: CCA 2,5/ 6-G-5,08 P26THR - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: CCA 2,5/..-G, pitch: 5.08 mm, connection method: Plug-in connection, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1,

Download 1954951 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1954951 - Phoenix Contact - PCB symbol
click to zoom

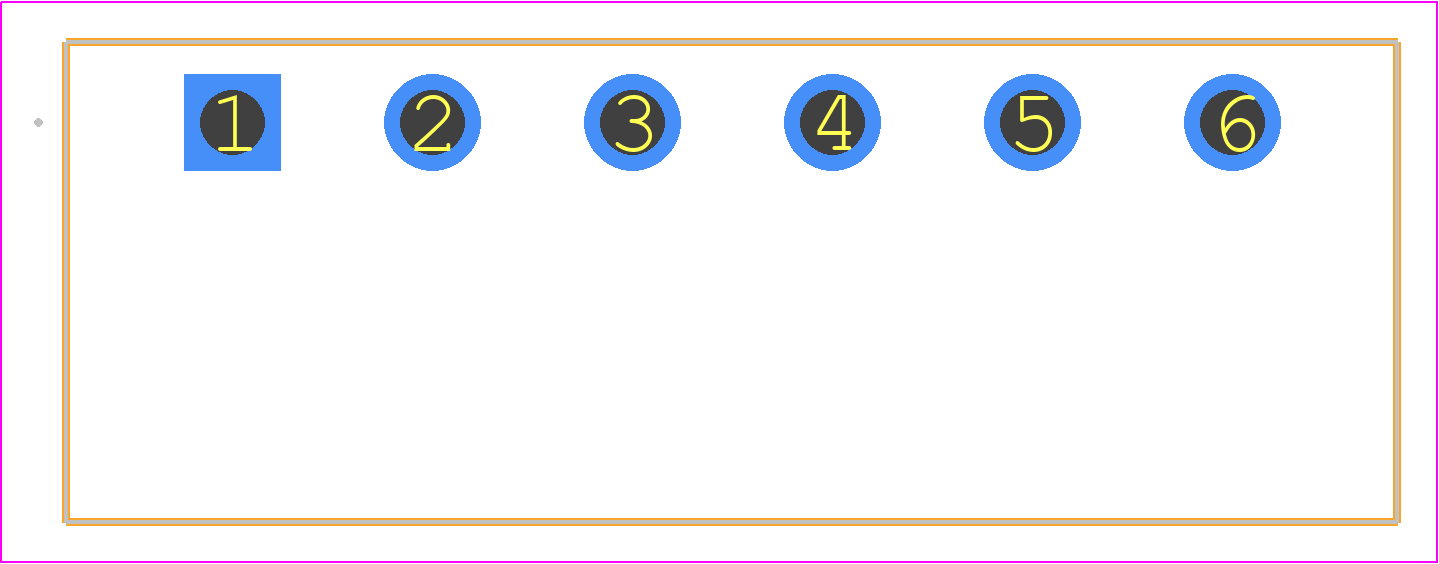

PCB Footprints
1954951 - Phoenix Contact PCB footprint - Other - Other - 1954951
click to zoom
3D Models
1954951 - Phoenix Contact - 3D model - Other - 1954951
click to zoom

1954951 Details

  • Manufacturer Part Number:

    1954951

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.54

  • Additional Feature:

    LCP, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1954951 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the installation instructions and follow the recommended torque to ensure a secure connection.
  • Yes, the 1954951 connector is designed to withstand vibrations and shocks. It meets the requirements of IEC 61373 Category 2, which means it can operate in environments with vibrations up to 15 g (IEC 61373-1) and shocks up to 30 g (IEC 61373-2). However, it's crucial to ensure proper installation and secure fastening to maintain the connector's integrity.
  • The 1954951 connector has a protection rating of IP67, which means it can withstand temporary immersion in water (up to 1 meter for 30 minutes) and is protected against dust ingress. However, it's not designed for continuous outdoor use or exposure to extreme temperatures, chemicals, or UV radiation. If you need a connector for outdoor use, consider using a connector with a higher protection rating, such as IP69K.
  • The 1954951 connector is designed for use with wires with a gauge range of 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14). While it may be possible to use it with other wire gauges or types, it's essential to consult the manufacturer's recommendations and ensure the connector is compatible with your specific wire requirements to avoid any potential issues or damage.
  • Yes, the 1954951 connector is part of the Phoenix Contact product family and is designed to be compatible with other Phoenix Contact products and systems. It can be used in conjunction with other connectors, terminals, and accessories from Phoenix Contact to create a comprehensive connection system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1954951 Overview

Use the download button to access the 1954951 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19549, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
