1955659 - Phoenix Contact

Description: CCV 2,5/ 4-GF-5,08 P26THR - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: CCV 2,5/..-GF, pitch: 5.08 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, P

Download 1955659 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1955659 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

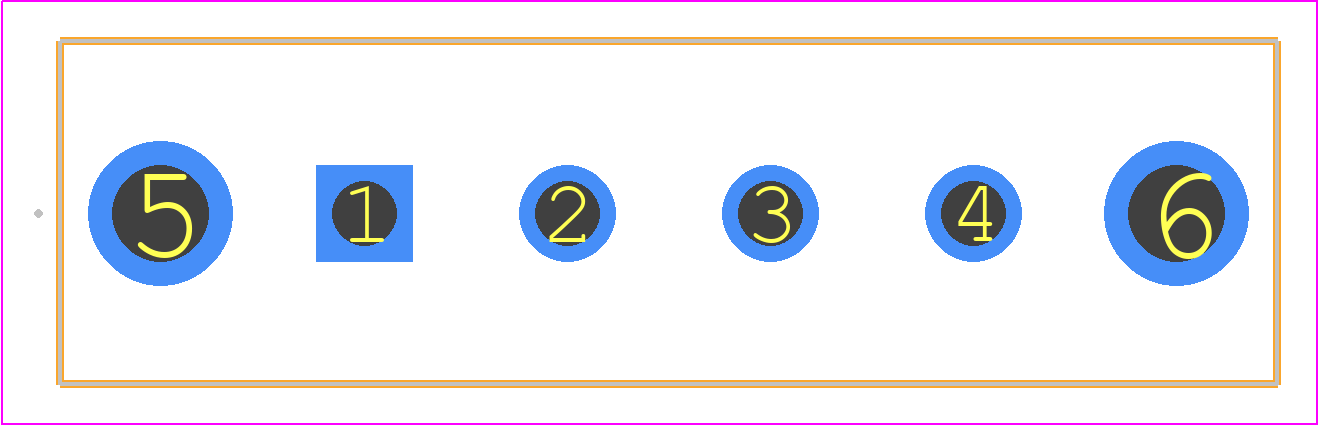

1955659 - Phoenix Contact PCB footprint - Other - Other - 1955659
click to zoom
3D Models
1955659 - Phoenix Contact - 3D model - Other - 1955659
click to zoom

1955659 Details

  • Manufacturer Part Number:

    1955659

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.75

  • Additional Feature:

    LCP, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1955659 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.4 Nm to 0.6 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for high-vibration applications.
  • Yes, the connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH, making it suitable for harsh environments.
  • The maximum current rating is 12 A per contact, as specified in the datasheet. However, it's essential to consider the overall system design and ensure that the connector is used within its rated specifications.
  • Yes, the connector is designed for automated assembly and can be used with standard pick-and-place machines and reflow soldering processes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1955659 Overview

Use the download button to access the 1955659 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19556, or try a keyword search, such as Terminals and Terminal Blocks
