196-PRS14001-12 - ARIES

196-PRS14001-12 Details

• Manufacturer Part Number:

  196-PRS14001-12

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Aries Electronics Inc

• YTEOL:

  6

• Additional Feature:

  WITHOUT MOUNTING EARS

• Body Breadth:

  1.875 inch

• Body Depth:

  0.265 inch

• Body Length:

  2.094 inch

• Contact Configuration:

  14X14

• Contact Finish Mating:

  GOLD OVER NICKEL

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Material:

  NOT SPECIFIED

• Contact Style:

  RND PIN-SKT

• Current Rating:

  1 A

• Device Socket Type:

  IC SOCKET

• Device Type Used On:

  PGA196

• Housing Material:

  POLYPHENYLENE SULPHIDE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.1 inch

• Mounting Style:

  STRAIGHT

• Number of Contacts:

  196

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

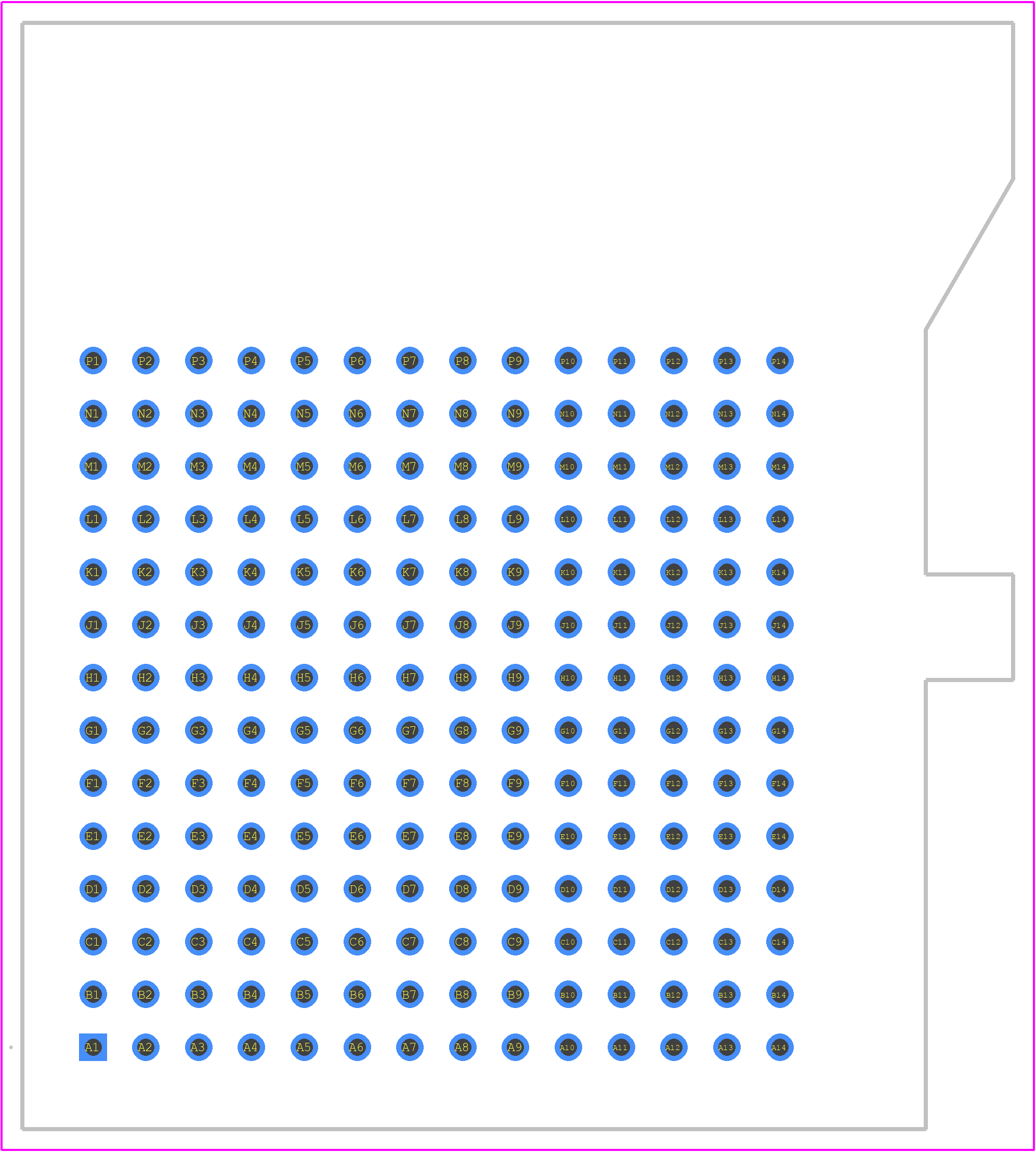

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  0.1 mm

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER
