1968650000 - Weidmüller

Description: PCB connector (board connection), 320 V, 23 A, Pitch in mm: 5.08, Number of poles: 6, THT solder connection, Box

Download 1968650000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1968650000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

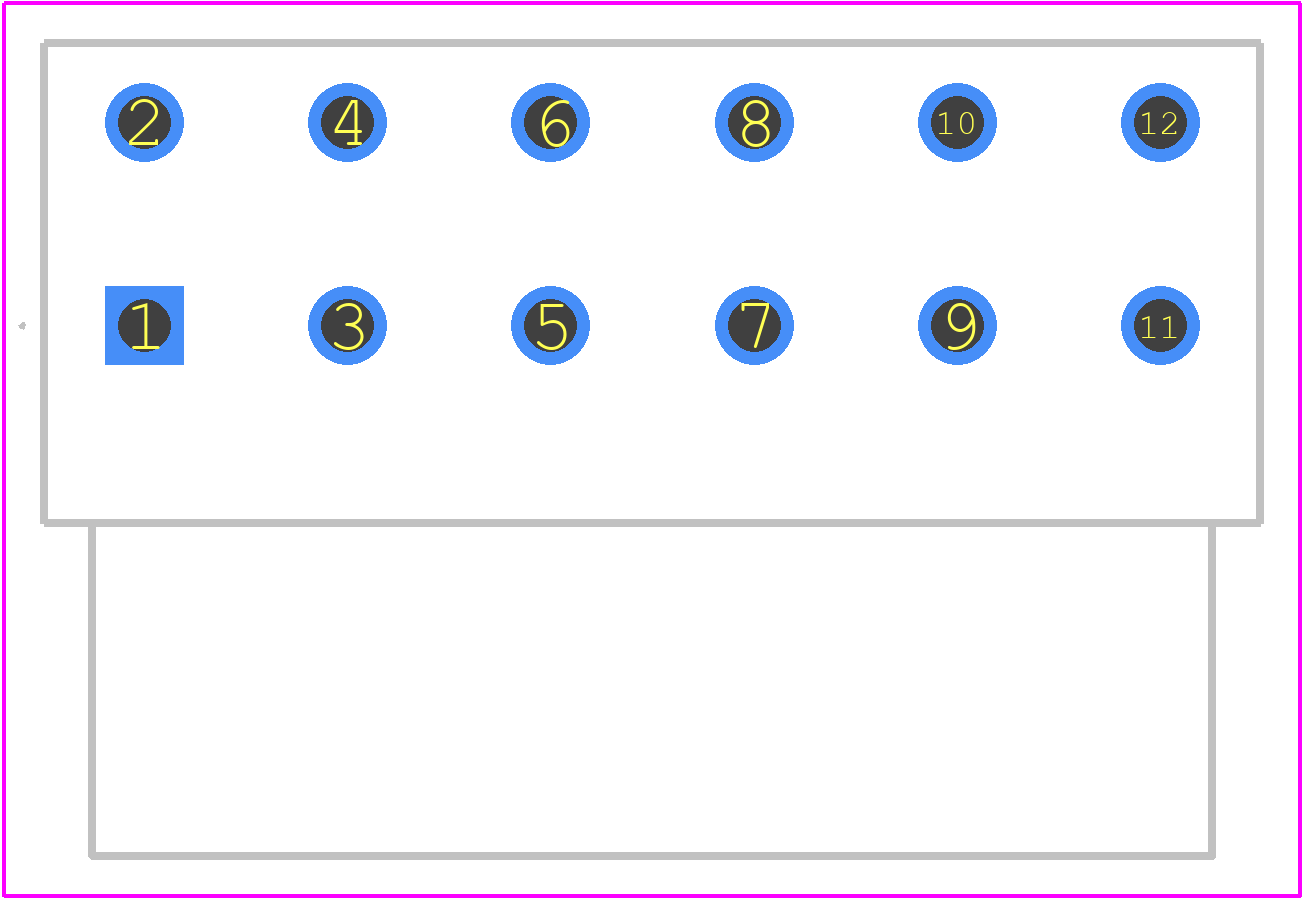

1968650000 - Weidmüller PCB footprint - Other - Other - 1968650000
click to zoom
3D Models
1968650000 - Weidmüller - 3D model - Other - 1968650000
click to zoom

1968650000 Details

  • Manufacturer Part Number:

    1968650000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1968650000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1968650000 is -40°C to 85°C.
  • Yes, the 1968650000 is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
  • The typical lead time for the 1968650000 is 2-4 weeks, depending on the quantity and availability.
  • The 1968650000 is designed to withstand vibrations up to 10g, making it suitable for use in applications with moderate vibration.
  • The 1968650000 is a modular connector system, and its compatibility with your existing system depends on the specific connector type and configuration. Consult with a Weidmüller representative or a qualified engineer to determine compatibility.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1968650000 Overview

Use the download button to access the 1968650000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19686, or try a keyword search, such as Terminals and Terminal Blocks
