1969694-3 - TE Connectivity

Description: Body Features: Connector & Keying Code A | Configuration Features: Number of Power Positions 3 | Number of Positions 3 | Number of Rows 1 | PCB Mount Orientation Right Angle | Number of Loaded Positions 3 | Contact Features: Contact Layout Inline | Contact Retention Within Housing With | PCB Contact Termination Area Plating Material Pre-Tin | Contact Mating Area Plating Material Tin | Contact Base Material Copper Alloy | Contact Type Pin | Contact Current Rating (Max) 18.5 AMP | Electrical Characteristics:

Download 1969694-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1969694-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

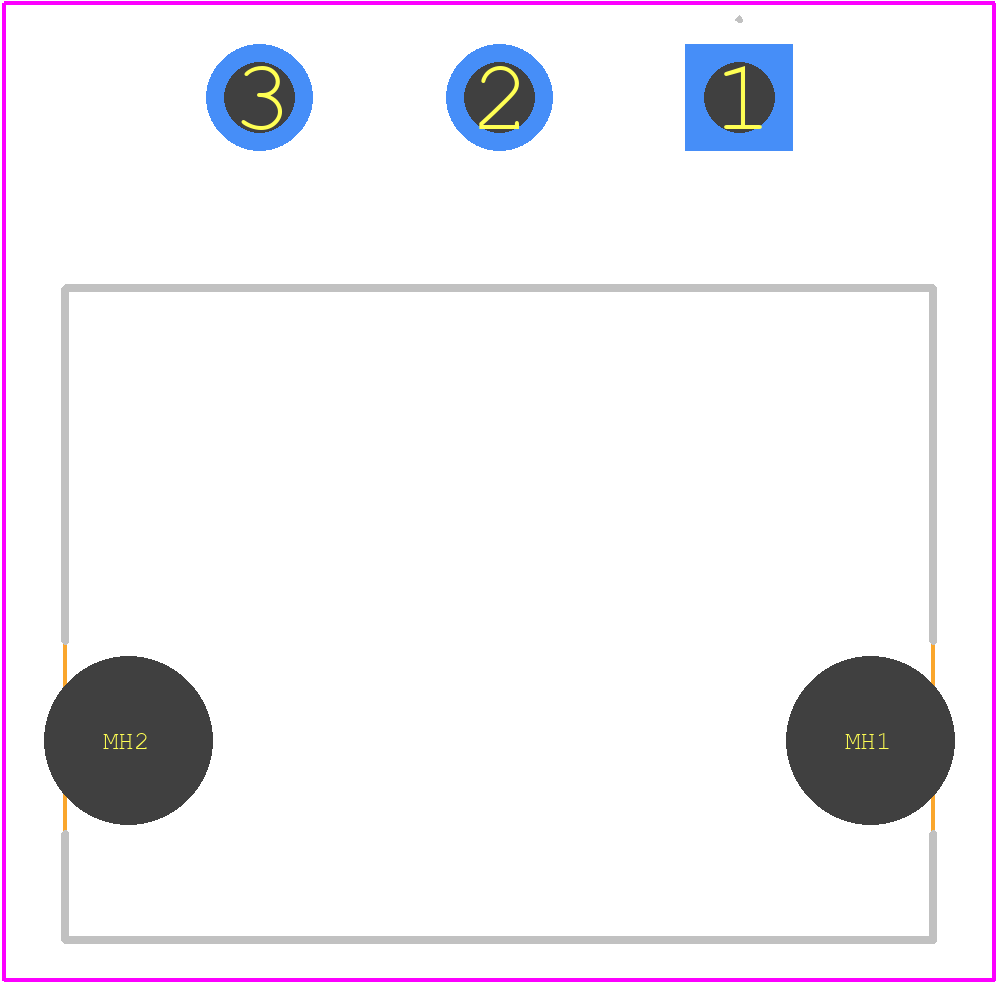

1969694-3 - TE Connectivity PCB footprint - Other - Other - 1969694-3-1
click to zoom
3D Models
1969694-3 - TE Connectivity - 3D model - Other - 1969694-3-1
click to zoom

1969694-3 Details

  • Manufacturer Part Number:

    1969694-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    LOCATING POST

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    18.5A

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    A

  • Rated Current (Signal):

    18.5 A

  • Rated Voltage:

    600 V

  • Reference Standard:

    UL, VDE

  • Terminal Pitch:

    6 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

1969694-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1969694-3 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to verify the wire size and termination method to ensure reliable connections.
  • The 1969694-3 connector is designed for use in industrial environments and can operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific environmental conditions and ensure the connector is properly sealed and protected to prevent moisture ingress or other environmental factors from affecting its performance.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow TE Connectivity's recommended PCB layout guidelines, including keeping the PCB traces and components away from the connector's mounting holes and ensuring proper clearance around the connector's body.
