1969694-4 - TE Connectivity

Description: Body Features: Connector & Keying Code A | Configuration Features: Number of Rows 1 | Number of Power Positions 4 | PCB Mount Orientation Right Angle | Number of Positions 4 | Number of Loaded Positions 4 | Contact Features: Contact Retention Within Housing With | Contact Current Rating (Max) 17.5 AMP | Contact Layout Inline | Contact Base Material Copper Alloy | Contact Type Pin | PCB Contact Termination Area Plating Material Pre-Tin | Contact Mating Area Plating Material Tin | Electrical Characteristics:

Download 1969694-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1969694-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

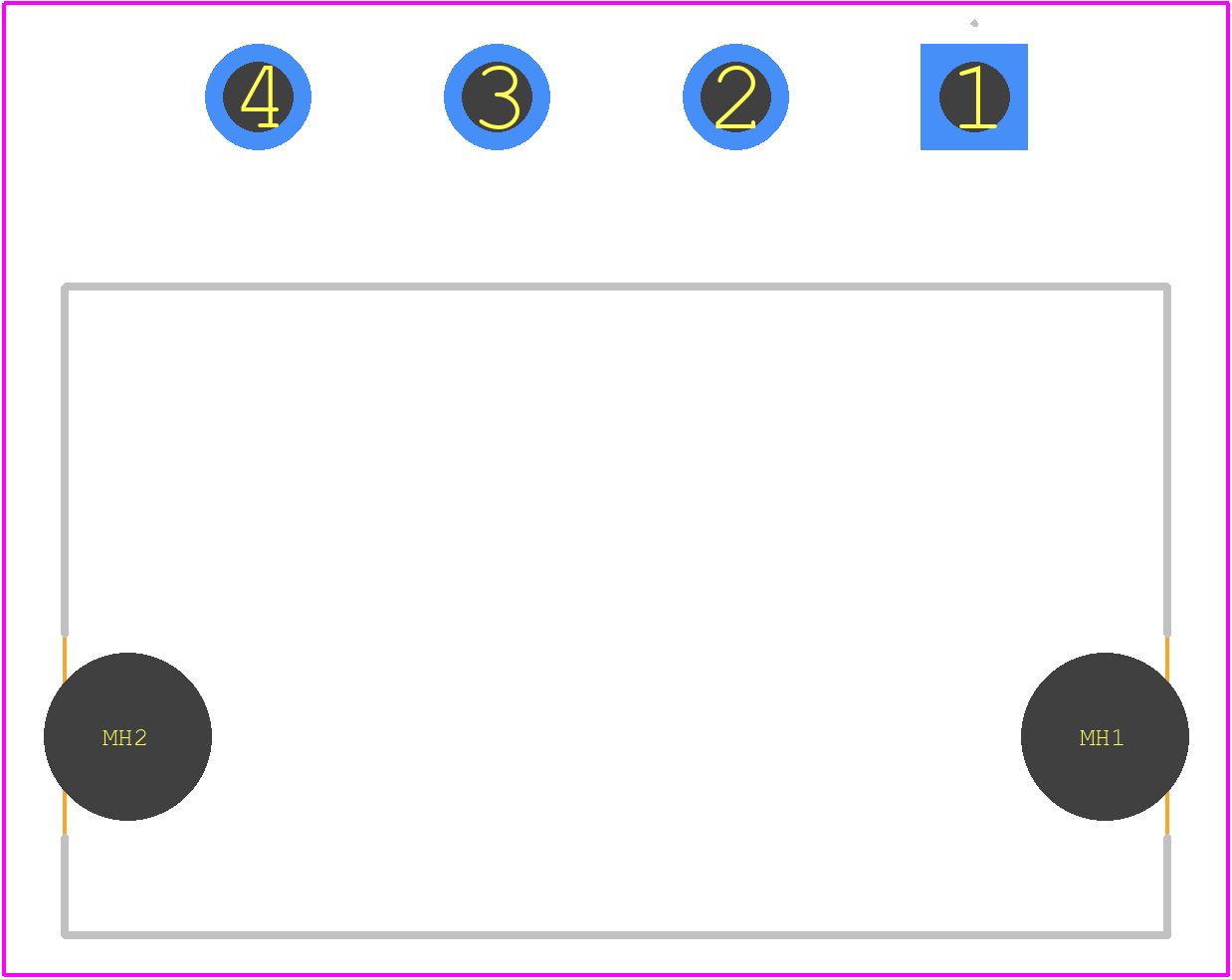

1969694-4 - TE Connectivity PCB footprint - Other - Other - 1969694-4-2
click to zoom
3D Models
1969694-4 - TE Connectivity - 3D model - Other - 1969694-4-2
click to zoom

1969694-4 Details

  • Manufacturer Part Number:

    1969694-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    LOCATING POST

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    17.5A

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    A

  • Rated Current (Signal):

    17.5 A

  • Rated Voltage:

    600 V

  • Reference Standard:

    UL, VDE

  • Terminal Pitch:

    6 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

1969694-4 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1969694-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 1969694-4 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure the connector is properly sealed and installed to maintain its environmental rating.
  • The 1969694-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the 1969694-4 connector is designed for use with 24 AWG wire, it can accommodate wire sizes between 20 AWG and 26 AWG. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow proper wire stripping and termination procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1969694-4 Overview

Use the download button to access the 1969694-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19696, or try a keyword search, such as Power Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
