Part Image

1969797 - Phoenix Contact

Description: IPCV 16/ 4-GF-10,16 - PCB headers, nominal cross section: 16 mm<sup>2</sup>, color: green, nominal current: 76 A, rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Socket, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: IPCV 16/..-GF, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Pin connector pattern al

Download 1969797 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

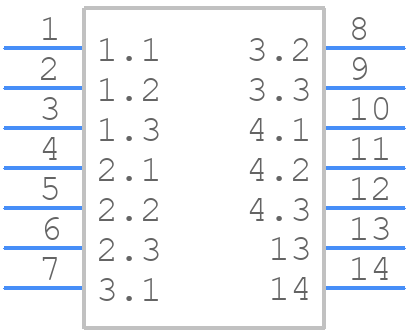

Symbol
1969797 - Phoenix Contact - PCB symbol
click to zoom

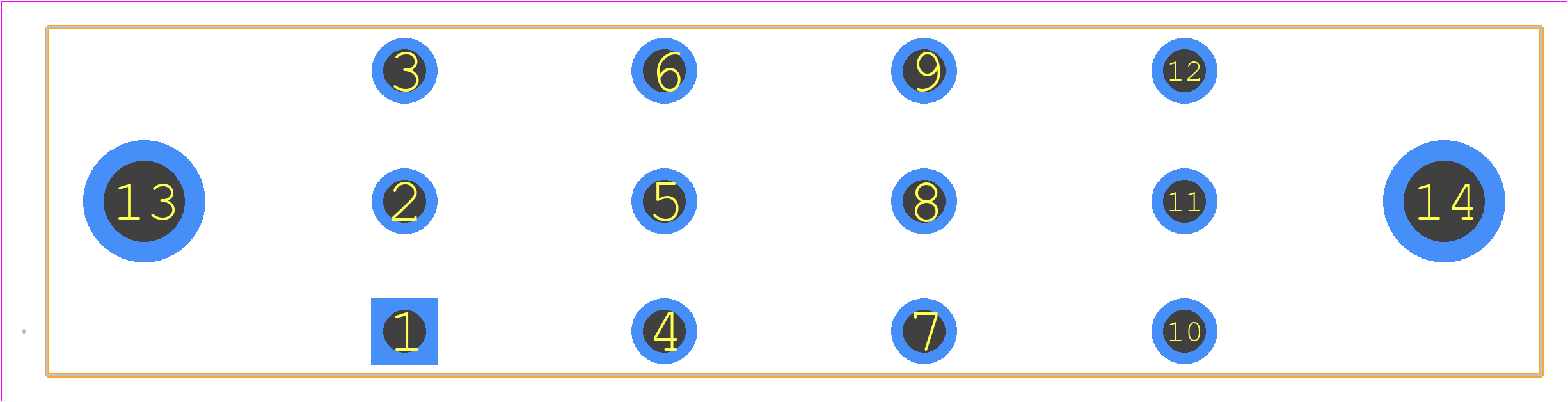

PCB Footprints
1969797 - Phoenix Contact PCB footprint - Other - Other - 1969797
click to zoom
3D Models
1969797 - Phoenix Contact - 3D model - Other - 1969797
click to zoom

1969797 Details

  • Manufacturer Part Number:

    1969797

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1969797 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact documentation.
  • The 1969797 product is not certified for use in hazardous locations. If you need a product for such applications, please consult with Phoenix Contact or a qualified engineer.
  • The maximum wire size that can be used with the 1969797 product is 2.5 mm² (AWG 14) according to the Phoenix Contact documentation.
  • The 1969797 product is designed for indoor use only. If you need a product for outdoor applications, please consider Phoenix Contact's outdoor-rated products or consult with a qualified engineer.
  • The 1969797 product is designed to withstand moderate vibrations. However, if you need a product for high-vibration environments, please consult with Phoenix Contact or a qualified engineer to determine the best solution.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1969797 Overview

Use the download button to access the 1969797 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19697, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
