1969830-1 - TE Connectivity

Description: Configuration Features: PCB Mount Orientation Vertical | Number of Positions 6 | Number of Rows 1 | Number of Power Positions 6 | Contact Features: Contact Type Socket | Contact Current Rating (Max) 19 AMP | PCB Contact Termination Area Plating Material Pre-Tin | Contact Mating Area Plating Material Thickness 150 – 200 MICIN | Contact Retention Within Housing Without | Contact Mating Area Plating Material Tin | Contact Mating Area Plating Material Thickness 3.81 – 5.08 MICM | Electrical Characteristics:

Download 1969830-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1969830-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

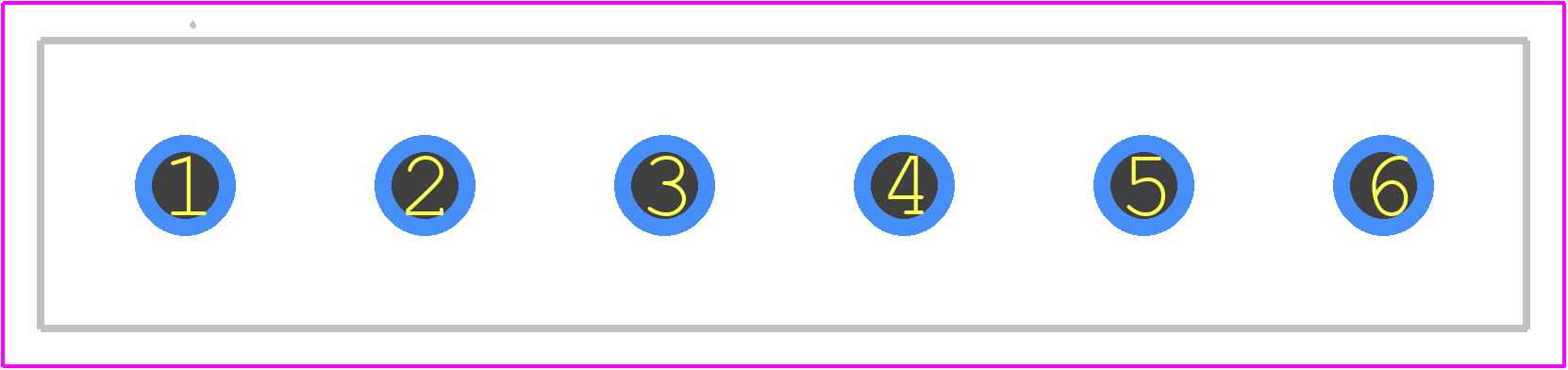

1969830-1 - TE Connectivity PCB footprint - Other - Other - 1969830-1-1
click to zoom
3D Models
1969830-1 - TE Connectivity - 3D model - Other - 1969830-1-1
click to zoom

1969830-1 Details

  • Manufacturer Part Number:

    1969830-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

1969830-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 1969830-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 1969830-1 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The operating temperature range of the 1969830-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 1969830-1 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. However, it's essential to verify compatibility and ensure proper mating and performance before using the connector with other products.
