1971845-3 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Rows 1 | Number of Positions 3 | Keying & Polarized Position Locations 1C, 2D | PCB Mount Orientation Vertical | Contact Features: PCB Contact Termination Area Plating Material Thickness 3.8 MICM | Mating Tab Thickness .8 MM | Mating Tab Width .248 INCH | Contact Base Material Copper Alloy | Mating Tab Width 6.3 MM | Contact Current Rating (Max) 16 AMP | PCB Contact Termination Area Plating Material Finish Matte | Contact Matin

Download 1971845-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1971845-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

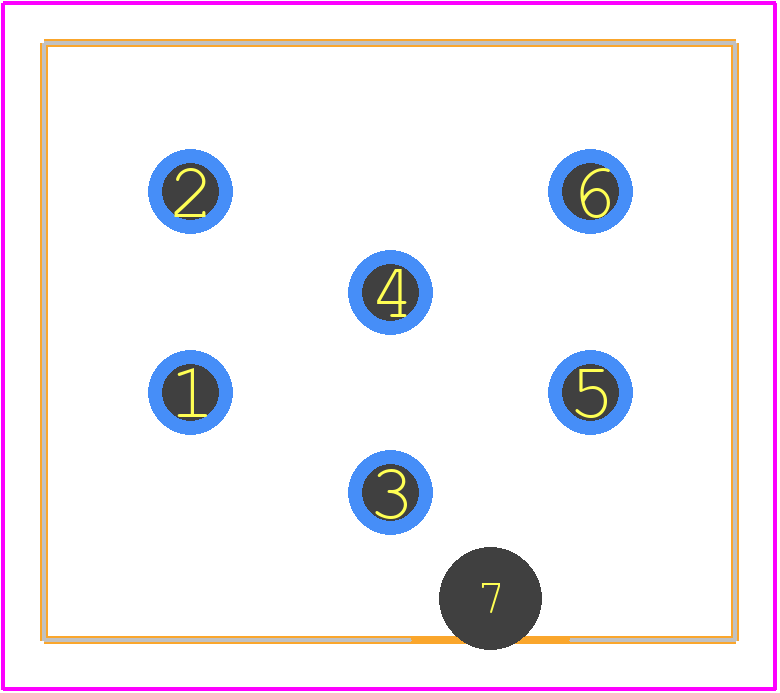

1971845-3 - TE Connectivity PCB footprint - Other - Other - 1971845-3-3
click to zoom
3D Models
1971845-3 - TE Connectivity - 3D model - Other - 1971845-3-3
click to zoom

1971845-3 Details

  • Manufacturer Part Number:

    1971845-3

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR
