1971846-4 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Positions 4 | Keying & Polarized Position Locations 3C, 4D | PCB Mount Orientation Vertical | Number of Rows 1 | Contact Features: Contact Current Rating (Max) 16 AMP | Mating Tab Thickness .8 MM | PCB Contact Termination Area Plating Material Thickness 149.6 MICIN | Contact Mating Area Plating Material Thickness 1 MICM | Contact Mating Area Plating Material Thickness 39.37 MICIN | Mating Tab Width 6.3 MM | Contact Mating Area

Download 1971846-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1971846-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

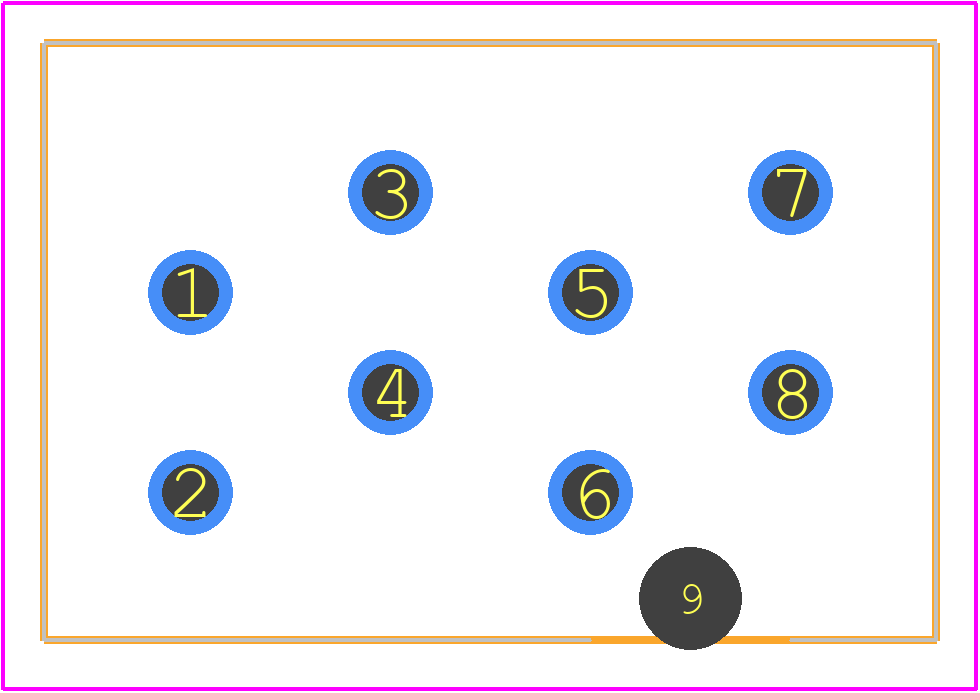

1971846-4 - TE Connectivity PCB footprint - Other - Other - 1971846-4-2
click to zoom
3D Models
1971846-4 - TE Connectivity - 3D model - Other - 1971846-4-2
click to zoom

1971846-4 Details

  • Manufacturer Part Number:

    1971846-4

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    PEG

  • Body Depth:

    0.5 inch

  • Body Length:

    1.07 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    16A

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    39.37u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    16 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1971846-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1971846-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes between 20 AWG and 26 AWG. However, it's crucial to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.
  • The 1971846-4 connector is designed to operate in temperatures ranging from -40°C to 105°C (-40°F to 221°F) and can withstand humidity levels up to 95%. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in harsh environments.
  • Yes, it's essential to follow proper PCB layout guidelines to ensure reliable connections and prevent damage to the connector. Key considerations include keeping the PCB traces away from the connector's mounting holes, using a sufficient solder mask, and ensuring the PCB material meets the connector's specifications.
