Part Image

1971846-8 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 8 Position, 5 mm [.197 in] Centerline, Fully Shrouded, Silver (Ag), RAST 5 IDC Connectors

Download 1971846-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1971846-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

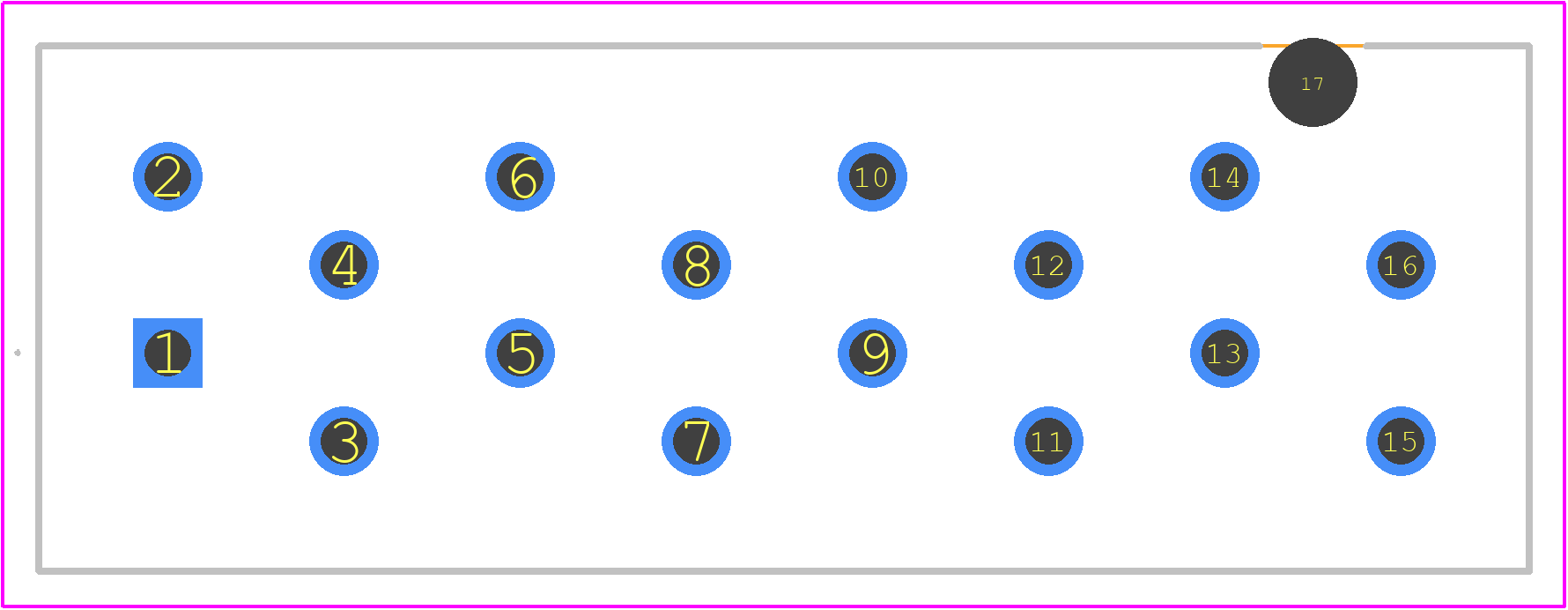

1971846-8 - TE Connectivity PCB footprint - Other - Other - 1971846-8-1
click to zoom
3D Models
1971846-8 - TE Connectivity - 3D model - Other - 1971846-8-1
click to zoom

1971846-8 Details

  • Manufacturer Part Number:

    1971846-8

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1971846-8 Overview

Use the download button to access the 1971846-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19718, or try a keyword search, such as Power Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
