1973180000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17.5 A, Pitch in mm: 3.81, Number of poles: 20, THT solder connection, Box

Download 1973180000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1973180000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

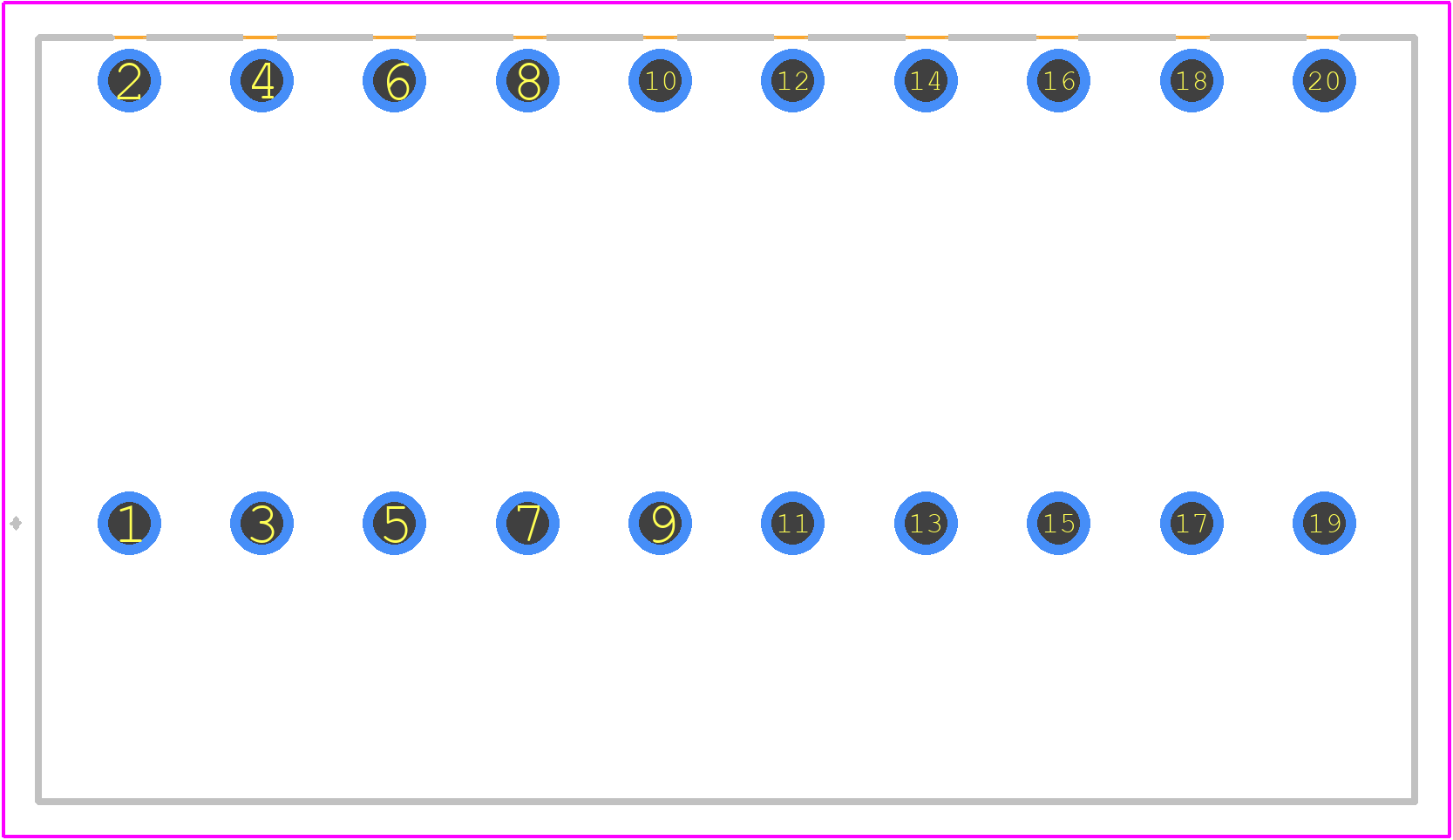

1973180000 - Weidmüller PCB footprint - Other - Other - 1973180000
click to zoom
3D Models
1973180000 - Weidmüller - 3D model - Other - 1973180000
click to zoom

1973180000 Details

  • Manufacturer Part Number:

    1973180000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    20

  • Rated Current:

    17.5 A

  • Rated Voltage:

    160 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1973180000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1973180000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1973180000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the necessary EU directives for environmental sustainability.
  • The recommended torque for the screw terminals on the 1973180000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller.
  • The 1973180000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications only.
  • The typical lead time for delivery of the 1973180000 varies depending on the region, distributor, and availability. It is recommended to check with authorized distributors or Weidmüller directly for the most up-to-date lead time information.
