1985030 - Phoenix Contact

Description: PTSA 1,5/ 9-3,5-F - Printed circuit board terminal, nominal current: 8 A, rated voltage (III/2): 250 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 9, number of rows: 1, number of positions per row: 9, product range: PTSA 1,5, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in

Download 1985030 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1985030 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

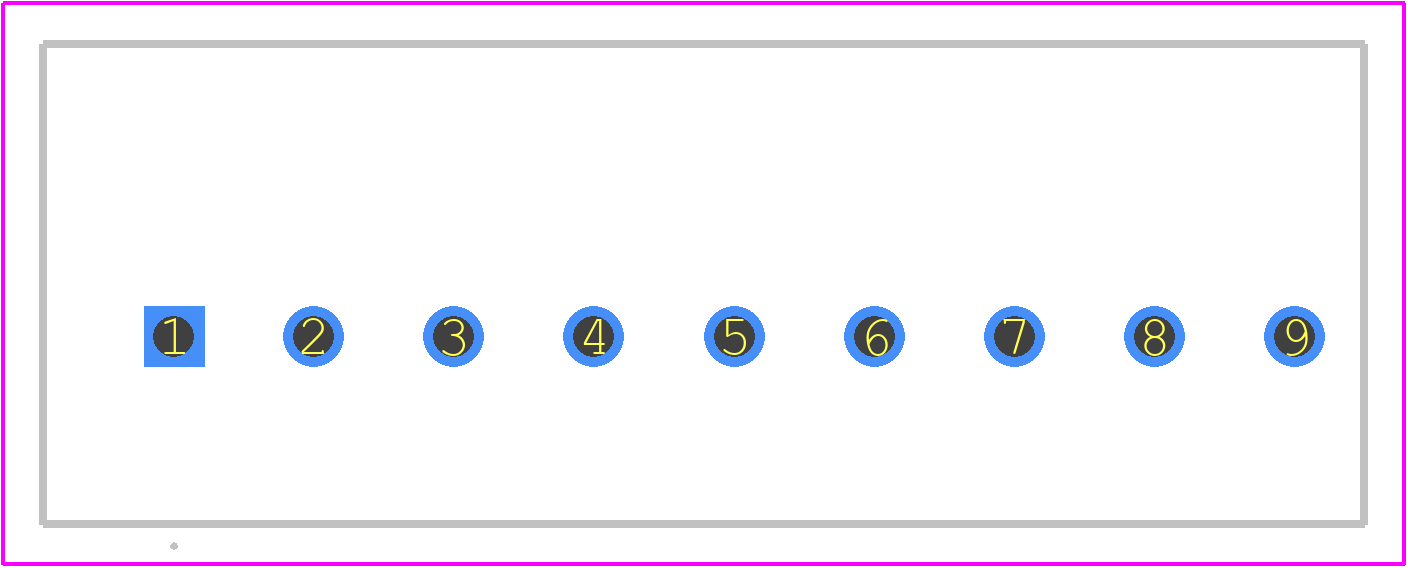

1985030 - Phoenix Contact PCB footprint - Other - Other - 1985030
click to zoom
3D Models
1985030 - Phoenix Contact - 3D model - Other - 1985030
click to zoom

1985030 Details

  • Manufacturer Part Number:

    1985030

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    2 A

  • Rated Voltage:

    200 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1985030 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5-10 lbf-in) to ensure a secure connection.
  • Yes, the 1985030 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in industrial and transportation applications.
  • Yes, the 1985030 connector has a IP67 rating, making it suitable for outdoor use and harsh environments, including exposure to dust and water.
  • While it's technically possible, it's not recommended to use a different wire gauge than specified in the datasheet, as it may affect the connector's performance and reliability.
  • To ensure proper mating, align the connector carefully, and make sure the latches are fully engaged. A distinct 'click' should be heard and felt when the connector is fully mated.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1985030 Overview

Use the download button to access the 1985030 schematic symbol, PCB footprint, and 3D model.
