1985043 - Phoenix Contact

Description: PTSA 1,5/10-3,5-F - Printed circuit board terminal, nominal current: 8 A, rated voltage (III/2): 250 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: PTSA 1,5, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed i

Download 1985043 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1985043 - Phoenix Contact - PCB symbol
click to zoom

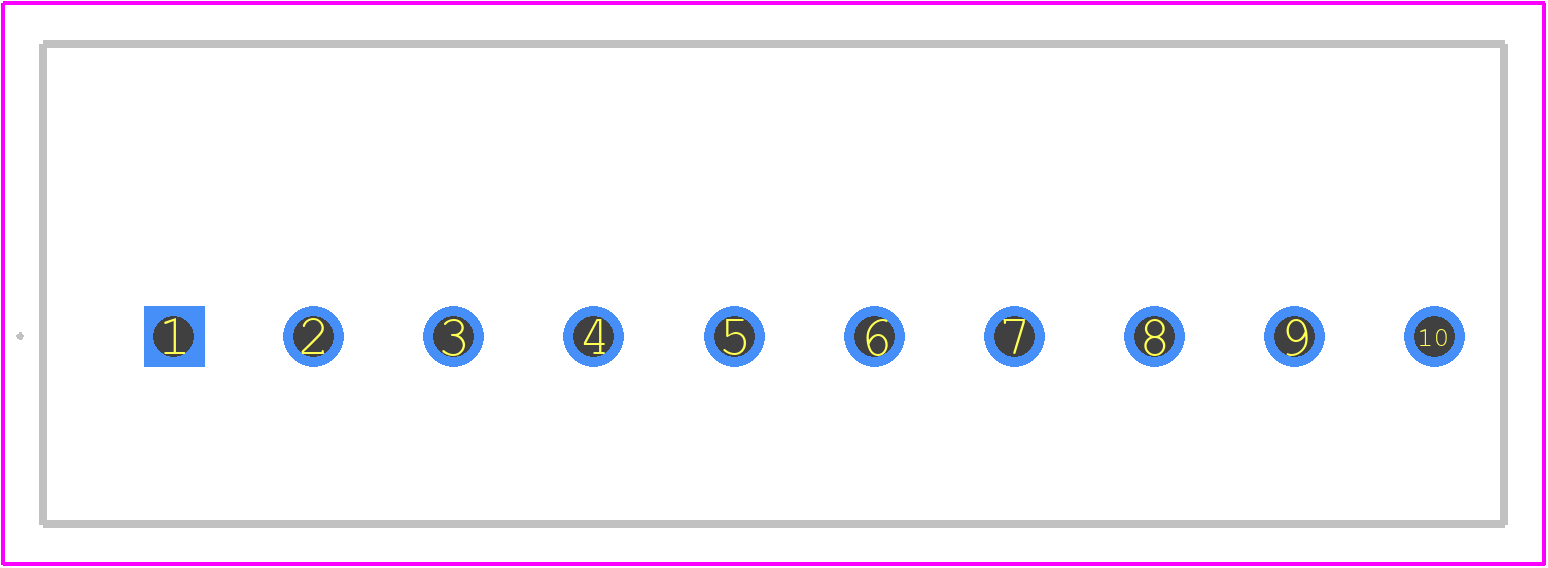

PCB Footprints
1985043 - Phoenix Contact PCB footprint - Other - Other - 1985043
click to zoom
3D Models
1985043 - Phoenix Contact - 3D model - Other - 1985043
click to zoom

1985043 Details

  • Manufacturer Part Number:

    1985043

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    2 A

  • Rated Voltage:

    200 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1985043 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting.
  • While the 1985043 is a robust connector, it's not specifically designed for high-vibration applications. For such use cases, consider using connectors with additional locking mechanisms or specialized vibration-resistant designs.
  • Yes, the 1985043 is designed for automated assembly and reflow soldering processes. However, ensure that your manufacturing process meets the recommended temperature and soldering profile to prevent damage to the connector.
  • The 1985043 is rated for operation up to 125°C (257°F). Exceeding this temperature may affect the connector's performance and lifespan.
  • While the 1985043 is a reliable connector, it's not designed for outdoor or harsh environmental applications. For such use cases, consider using connectors with IP67 or higher ratings, or specialized connectors designed for outdoor or harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1985043 Overview

Use the download button to access the 1985043 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19850, or try a keyword search, such as Terminals and Terminal Blocks
